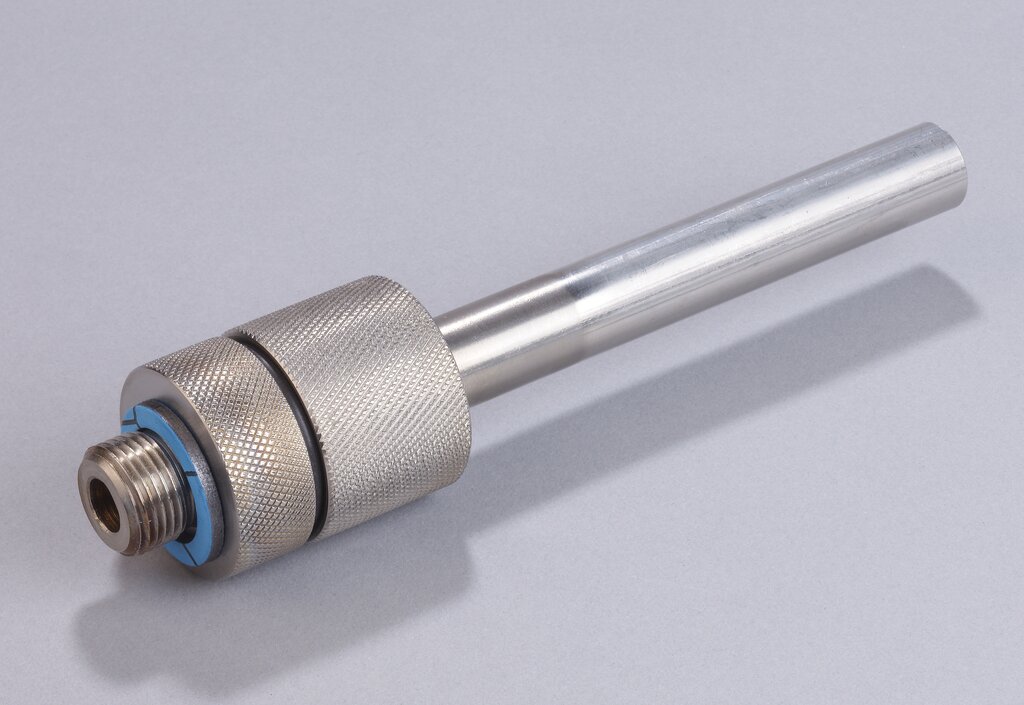

Support Tube Adapter PSP4000/AO

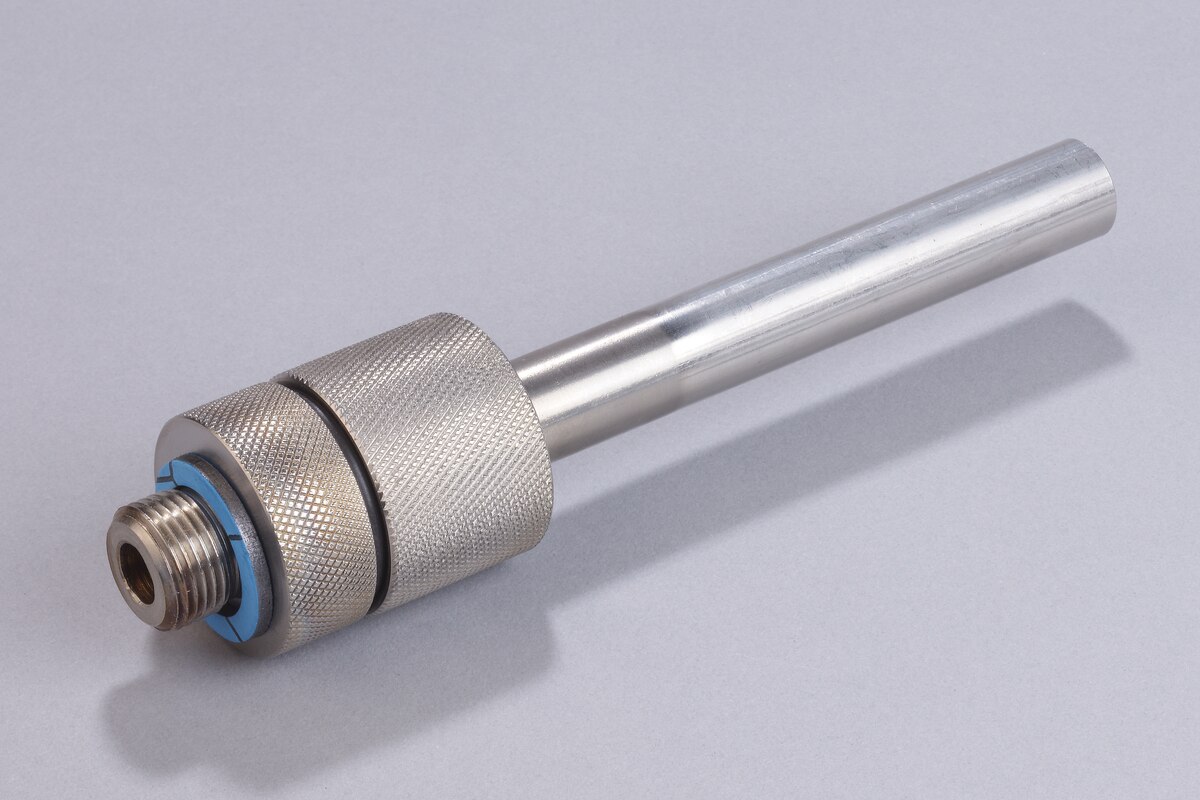

Support Tube Adapter PSP4000/AO

Part No.: 40S9111

Product features

Support adapter for sample tube made of aluminium oxide ceramic
For portable gas sample probe PSP4000
With 3 o-rings and 1 gasket
Material of sample-contacting parts: stainless steel, Novapress^®

Product information & downloads

Manual

Data sheet
