Portable Sampling System PSS-STS

Part No.: 07A2000

Product features

  • Designed for short and long-term measurements up to 2 weeks

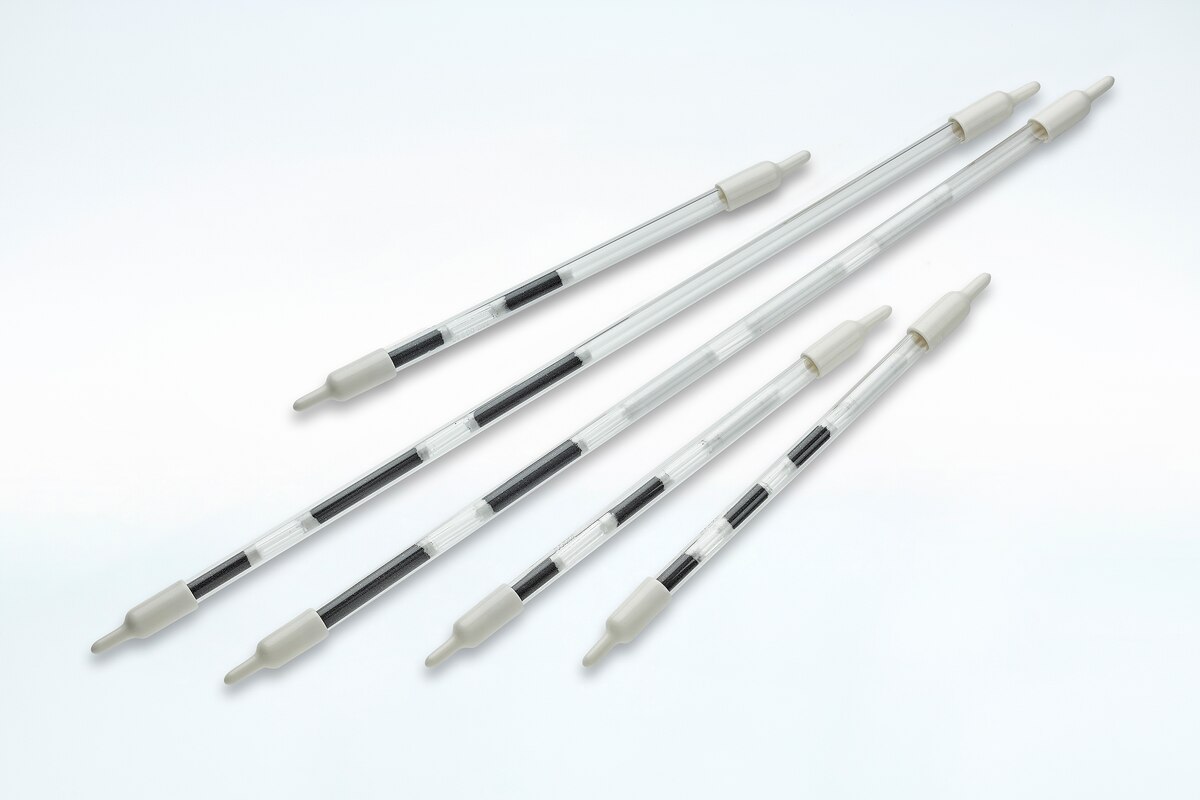

  • Simple replacement of the traps
  • 2 parallel sampling channels for traps with 10 mm diameter and up to 400 mm length
  • Automatic leakage tests before and after the collecting cycle
  • Flow rates from 2 to 87 Nl/h
  • Peltier cooler for condensate separation
  • Control and cooler unit in two mobile and portable plastic cases
  • Ready for operation incl. warm-up phase in 30 minutes
  • Suitable for monitoring of low emission limits

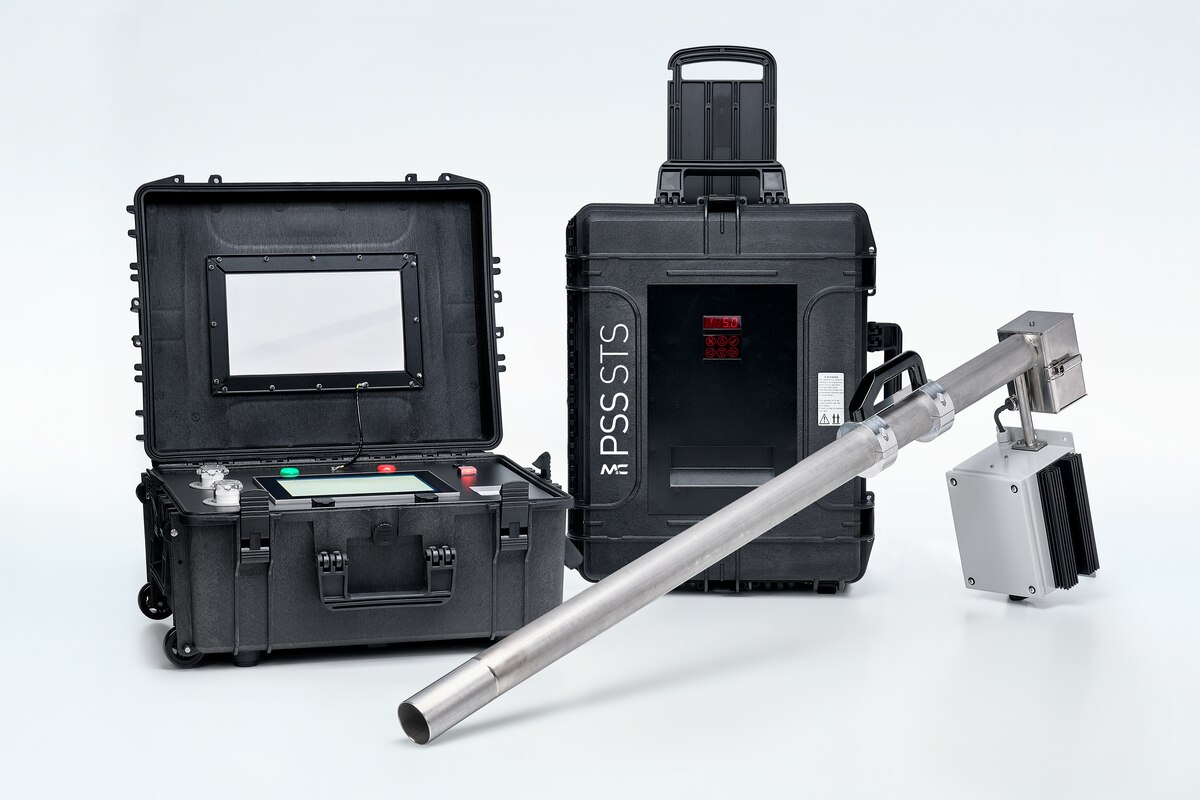

Frontal view of the sampling system PSS-STS consisting of gas sampling probe, sampling tube, cooler unit and control unit

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Description
    The portable sampling system PSS‑STS is used to determine the total mercury concentration in flue gases. The flue gas is actively drawn from the process via a sample probe and passed through the sorbent traps. The downstream cooler, which separates the condensate, and the control unit are housed in two impact‑resistant cases (IP42). The control unit contains a front‑panel PC for monitoring and controlling the sampling process, including automatic leak tests. After completion of the sampling process, the traps are sealed and analyzed in a laboratory. New traps are used for each subsequent measurement.

Options & spare parts
Portable Sampling System PSS-STS

Here you get an overview of suitable options & spare parts

Product options

Options
Portable Sampling System PSS-STS

Configure the product in 4 steps
