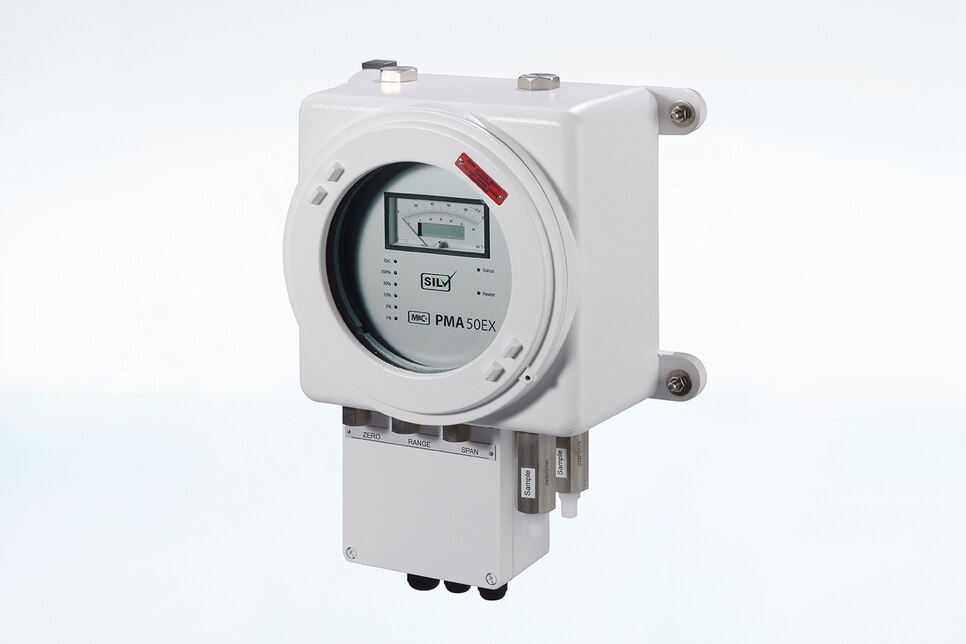

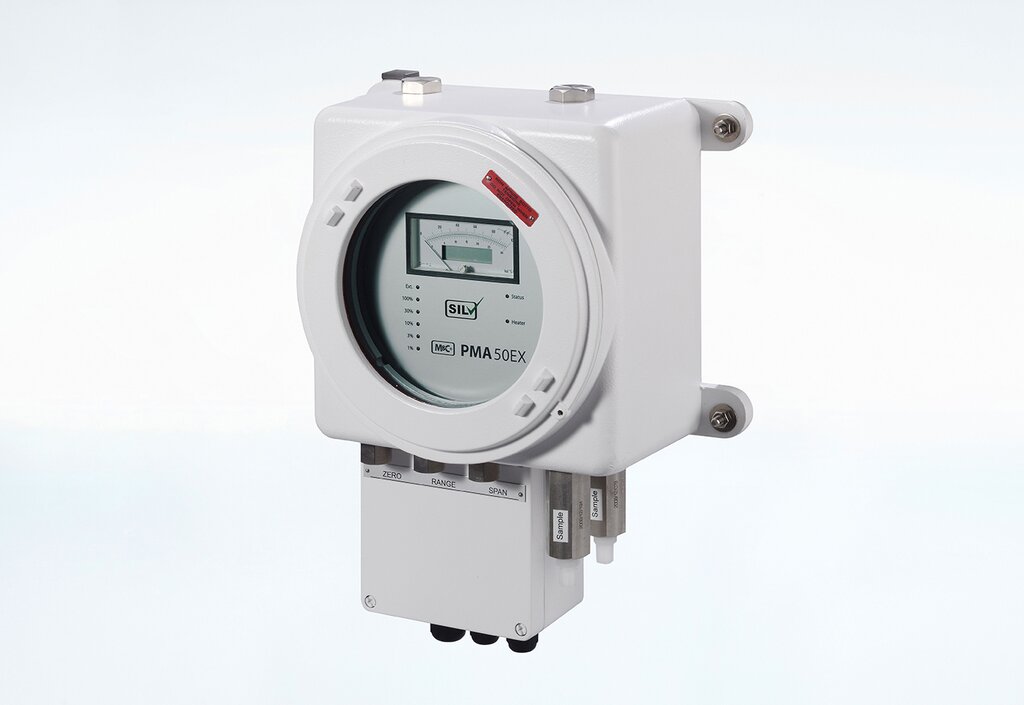

Oxygen Analyzer PMA50 EX

Part No.: 05A1000A

Product features

  • Heated O2 analyzer, explosion-proof version acc. to ATEX suitable for mounting in zone 1
  • In EX-d explosion-proof wall-mount housing
  • SIL certification according to DIN EN 61508
  • Paramagnetic measuring principle
  • Measuring range remote control and indication
  • Flow alarm sensor downstream of the measuring cell
  • With combined analog/digital display
  • mA output: 0 to 20 mA or 4 to 20 mA
  • Small stagnant space, fast response time
  • Power: 115 V

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    With five switchable measuring ranges, heated measuring cell, with analog/digital display, status alarm, power: 115 V/60 Hz or 230 V/50 Hz

  • Applications
    Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell without dead space as well as the negligible cross-sensitivity towards other sample gas components, the M&C oxygen analyzer PMA50 EEX is a suitable and reliable instrument for monitoring oxygen concentrations in various analytical gas process control applications.
  • Description
    Oxygen analyzer type PMA50Ex, explosion‑proof version for Ex zone 1 with protection class according to ATEX: II 2 G EX db eb IIC T4 Gb IBExU 16 ATEX 1192 X, IECEx: IBE 16.0041X, SIL‑conform to DIN EN 61508 SIL2, with combined analog/digital display in aluminium Exd housing, signal output: 4 to 20 mA (optionally 0 to 20 mA) with galvanic isolation max. load of 270 ohms (800 ohms on request), measuring ranges: 0 to 1/3/10/30/100 vol% O2, can be pre‑selected on the analyzer or externally, contact outputs for measuring range display, status signal output for heating, fuse, projection LED and flow rate, 2 ventilation units for sample gas inlet and outlet, thermostatization of the transducer to +55 °C, power: 115 V/60 Hz
  • Product features
    Explosion-proof Yes
    Portable No
    Power supply 110‒120 V

Options & spare parts
Oxygen Analyzer PMA50 EX

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Oxygen Analyzer PMA50 EX

Options
Oxygen Analyzer PMA50 EX

Configure the product in 4 steps

Was frequently viewed

Oblique view of Compressor Gas Cooler ECEX-1G

Compressor Gas Cooler ECEX-1G

02K5000

  • Explosion-proof
    • Yes
  • Cooling
    • Compressor
  • Temperature
    • > 2 °C [> 28.4 °F]
  • Gas paths
    • 1‒4
  • Flow rate/gas path
    • > 150 Nl/h
  • Material
    • Glass
  • Power supply
    • 220‒240 V
Certifications

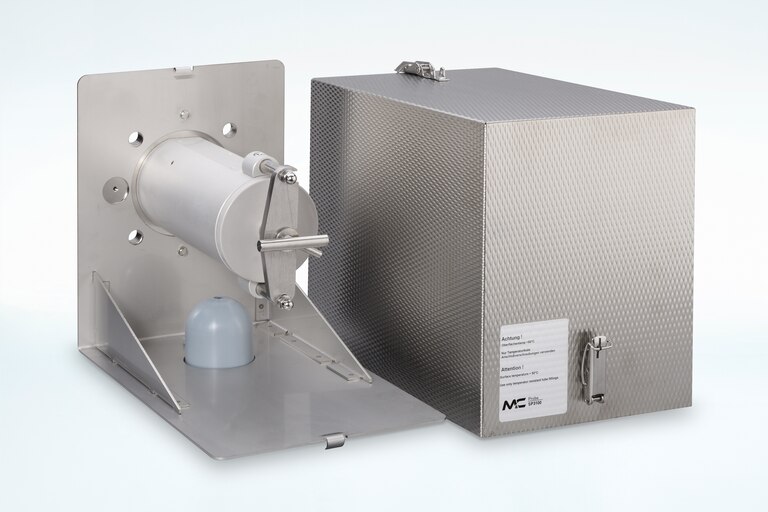

Oblique view of Gas Sample Probe SP3100V/Ex, Zone 1 and weather protective cover
