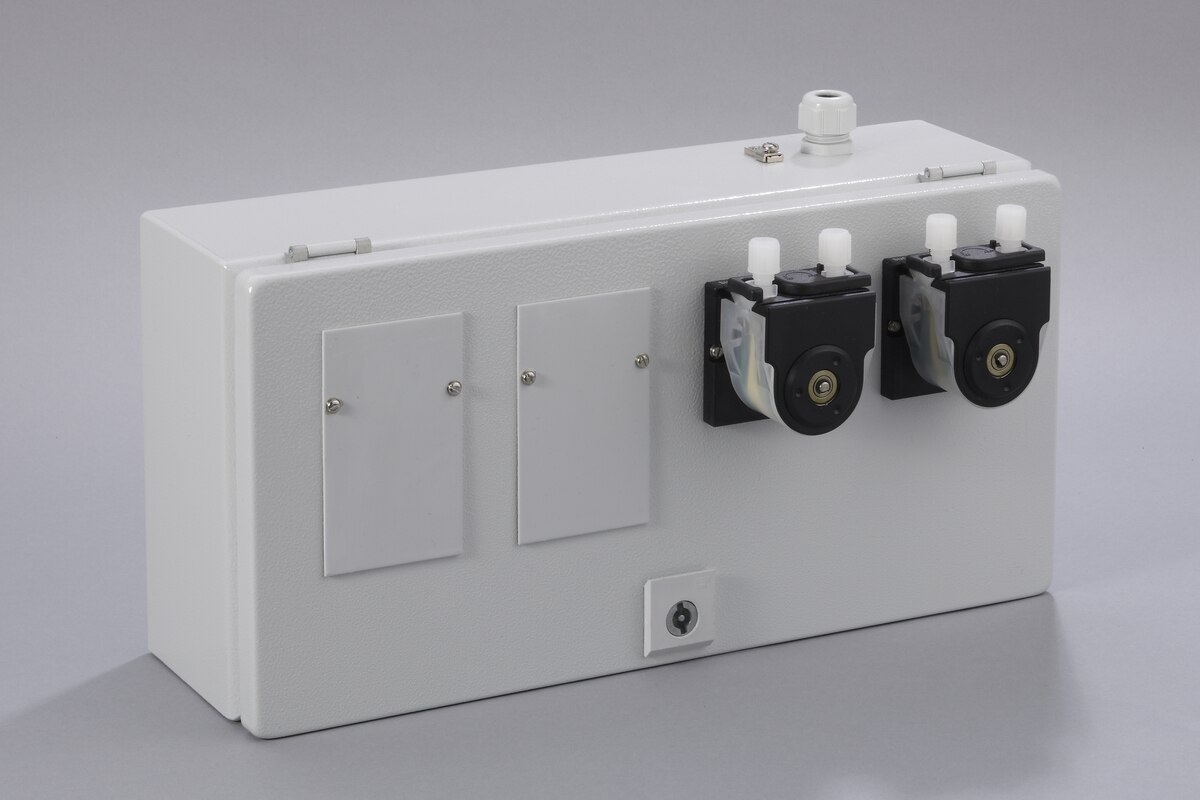

Peristaltic Pump SR25.1/Ex-G 2 pcs.

Part No.: 01P1260

Product features

  • Explosion-proof version according to ATEX for zone 1
  • 2 peristaltic pumps in a stainless steel enclosure for up to four pumps
  • Safe condensate removal
  • Self-priming: pumps create a suction force to draw liquid upwards
  • With return stop
  • Rotational speed: 5 rpm
  • Flow rate: 0.3 l/h
  • Material of sample-contacting parts: Novoprene, PVDF

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For Ex zone 1, power: 230 V/50 Hz

  • Applications
    The peristaltic pump SR25.1 has been specially developed for the condensate removal in analytical applications. It ensures a continuous condensate discharge in gas coolers, condensate collecting vessels, etc. A synchronous motor and the gearing unit with return stop prevent the condensate from flowing back. The capacity of 0.3 l/h guarantees a safe condensate removal, e.g. when cooling 850 l/h sample gas with an initial dew point of +70 °C.
  • Description
    Peristaltic pump (2 pcs.) type SR25.1/Ex‑G in a steel sheet protection housing, dimensions (H x W x D): 200 x 400 x 120 mm, ATEX certified version for hazardous zone 1 areas with the marking: II 2 G EEx m II T5, KEMA Nr.: 03ATEX2218x, capacity: 0.3 Nl/h, pressure range: 200 mbar to 2.2 bar abs., material: Novoprene, PVDF, tube connection: DN 4/6, with Ex terminal box, cable gland M 20 x 1,5, power: 115/230 V, 50/60 Hz
  • Product features
    Type Pump
    Explosion-proof Yes
    Flow rate ≤ 300 ml/h
    Material Novoprene
