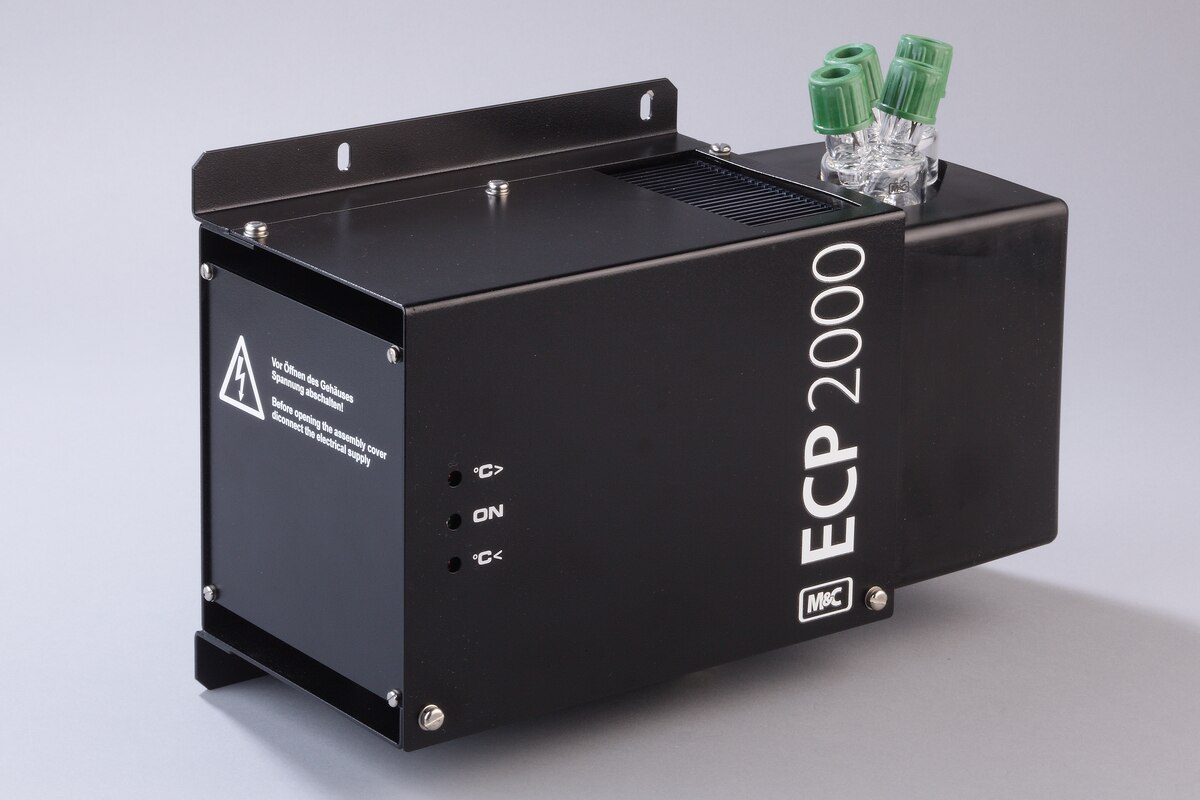

Peltier Gas Cooler ECP2000-G

Part No.: 01K2100

Product features

  • Peltier gas cooler with 2 Jet-Stream heat exchangers made of Duran® glass
  • Gas flow rate: max. 2 x 150 Nl/h
  • Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
  • With a total cooling capacity of 90 kJ/h at +25 °C [+77 °F] ambient temperature
  • Ambient temperature up to +50 °C [+122 °F]
  • With status alarm contact
  • Compact and lightweight design
  • Power: 115/230 V switchable

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Two gas paths, max. flow: 2 x 150 Nl/h, different materials of heat exchangers, power: 115/230 V, 60/50 Hz

  • Applications
    The ECP 2000 gas cooler is used in gas analysis technology to lower the dew point of humid gases to avoid condensation in the analyzer. An extremly stable gas outlet dew point prevents water vapor cross-sensitivity and volumetric errors.
  • Description
    Electric gas cooler type ECP2000‑G with Peltier element, electronically regulated to +5 °C, high/low‑temperature alarm with 2 changeover contacts, 2 Jet‑Stream heat exchangers out of Duran® glass for 150 Nl/h each, connections: sample gas: GL18‑6 mm, condensate: GL 25‑12 mm, power: 230 V/50 Hz or 115 V/60 Hz to switch over
  • Product features
    Explosion-proof No
    Cooling Peltier
    Temperature > 2 °C [> 28.4 °F]
    Gas paths 2
    Flow rate/gas path 150 Nl/h
    Material Glass
    Power supply 110‒120 V 220‒240 V
