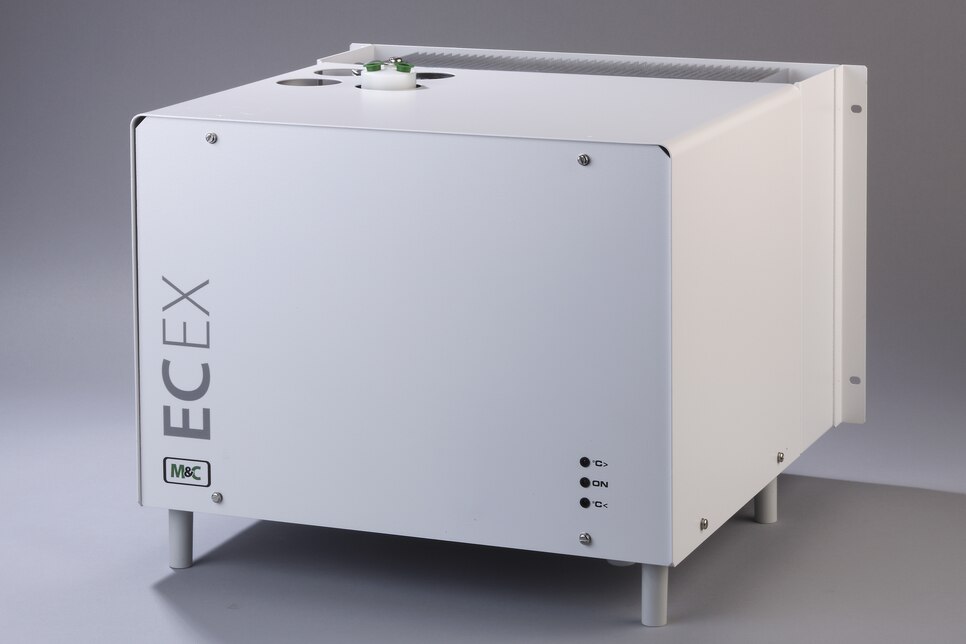

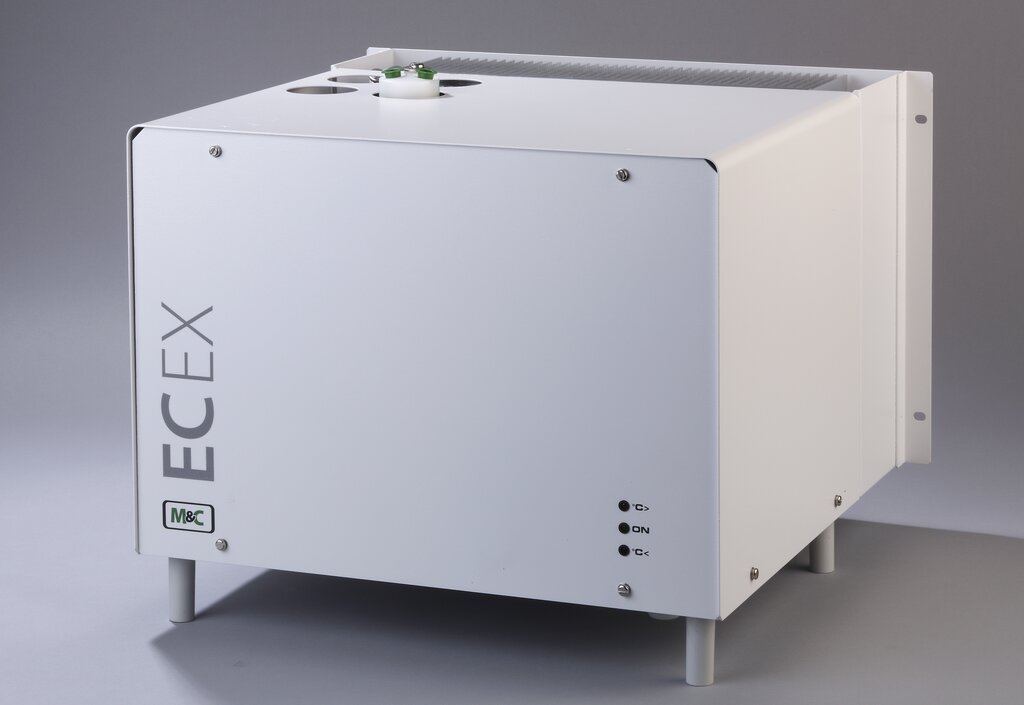

Compressor Gas Cooler ECEX-1PV

Part No.: 02K5020

Product features

  • Compressor gas cooler with 1 Jet-Stream heat exchanger made of PVDF
  • With a gas flow rate of max. 1 x 250 Nl/h
  • Explosion-proof version according to ATEX for zone 1
  • Housing designed for up to 4 Jet-Stream heat exchangers
  • Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions
  • With a total cooling capacity of max. 520 kJ/h at +25 °C [+77 °F] ambient temperature
  • Ambient temperature up to +45 °C [+113 °F]
  • With status alarm contact
  • In a 19" rack or wall-mounting housing
  • Power: 230 V
  • Optionally: Jet-Stream heat exchangers, automatic or manual condensate removal

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For Ex zone 1, max. four gas paths, max. flow: 250 Nl/h each, different materials of heat exchangers, power: 230 V/50 Hz or 115 V/60 Hz

  • Applications
    The M&C gas coolers type EC are used in gas analysis applications to lower the dew point of humid gases in order to prevent condensation in the analyzer. By setting an extremely stable gas outlet dew point, water vapor cross-sensitivity and volumetric errors are avoided.
  • Description
    Compressor gas cooler type EC‑Ex‑1PV, ATEX certified version for hazardous zone 1 areas with the marking: II 2 G EX pxb db eb [ib] IIC T4 Gb, EXAM NR.: 17 ATEX E 080, IECEx BVS 18.0021, in wall‑mount enclosure or, on request, as 19" built‑in rack version, housing depth: 450 mm, electronically regulated to +5 °C, high and low‑temperature alarm with 1 changeover contact, Jet‑Stream heat exchangers made of PVDF for 1 x 250 Nl/h (max. 4 pcs.), connections: sample gas: G 1/4" f, condensate: G 3/8" f, power: 230 V/50‑60 Hz
  • Product features
    Explosion-proof Yes
    Cooling Compressor
    Temperature > 2 °C [> 28.4 °F]
    Gas paths 1‒4
    Flow rate/gas path > 150 Nl/h
    Material PVDF
    Power supply 220‒240 V

Options & spare parts
Compressor Gas Cooler ECEX-1PV

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Compressor Gas Cooler ECEX-1PV

Options
Compressor Gas Cooler ECEX-1PV

Configure the product in 4 steps

Was frequently viewed

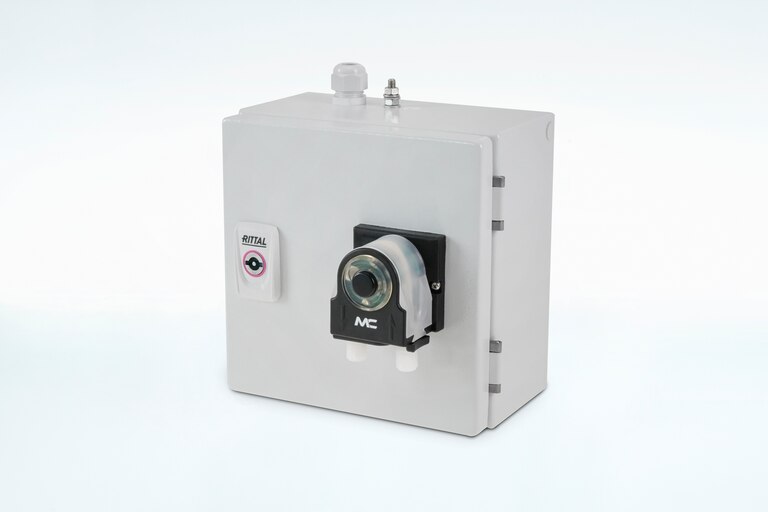

Frontal view of Peristaltic Pump SR25.1/Ex-G
