Ultra-Low Compressor Gas Cooler EC30C

Part No.: 02K6100

Product features

  • Ultra-low gas cooler with compressor pre-cooler and 2 ultra-low Peltier cooling stages

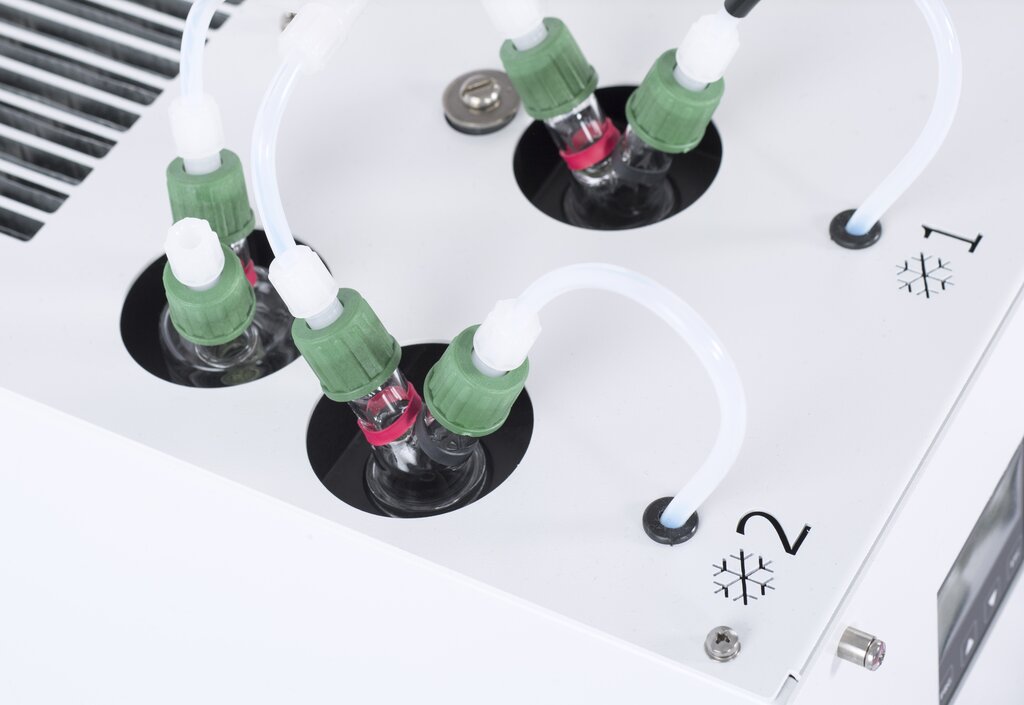

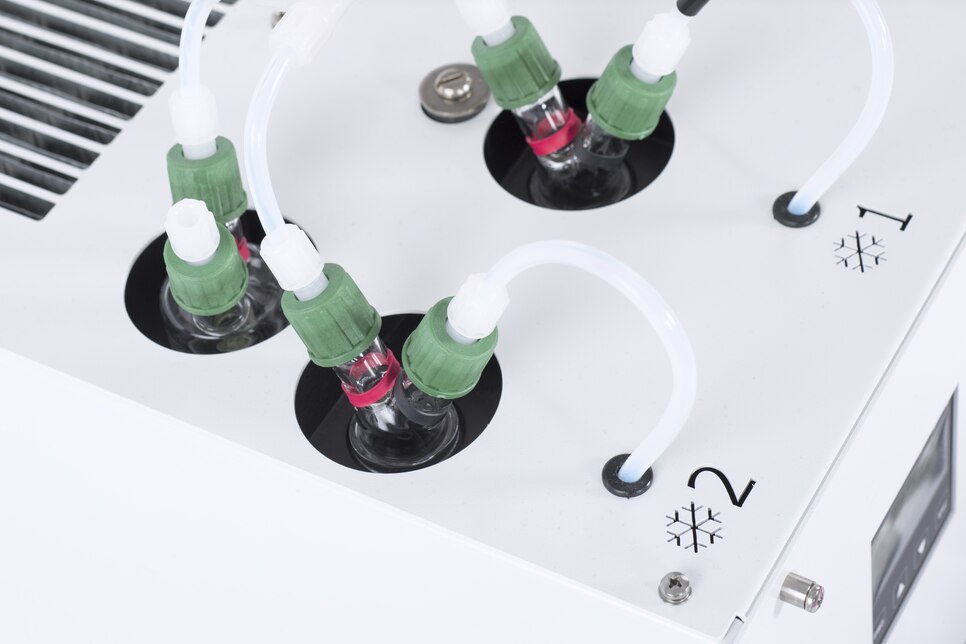

  • With 1 standard and 2 modified Jet-Stream heat exchangers made of Duran® glass
  • Single channel unit with a gas flow rate of max. 1 x 250 Nl/h
  • Cooling capacity 130 kJ/h at 5 to 45 °C [+41 to 113 °F]
  • Outlet dew point can be set from -20 to -30 °C [-4  to -22 °F]
  • Outlet dew point stability: ±0.1 °C [±0.18 °F]
  • Inlet water vapour dew point up to +70 °C [+158 °F]
  • Icon-based graphical display for easy and intuitive navigation
  • Periodical self-monitoring with advance warning to inform about pending maintenance work
  • Configurable mA output as well as separate alarm and warning relays for active ultra-low cooling stage
  • In a 19" rack or wall-mounting housing
  • Power: 230 V
  • Optionally: up to 3 peristaltic pumps SR25.2, liquid particle filter to separate aerosols, liquid alarm sensor, flow meter, flow sensor, purging of the heat exchanger in the inactive ultra-low cooling stage

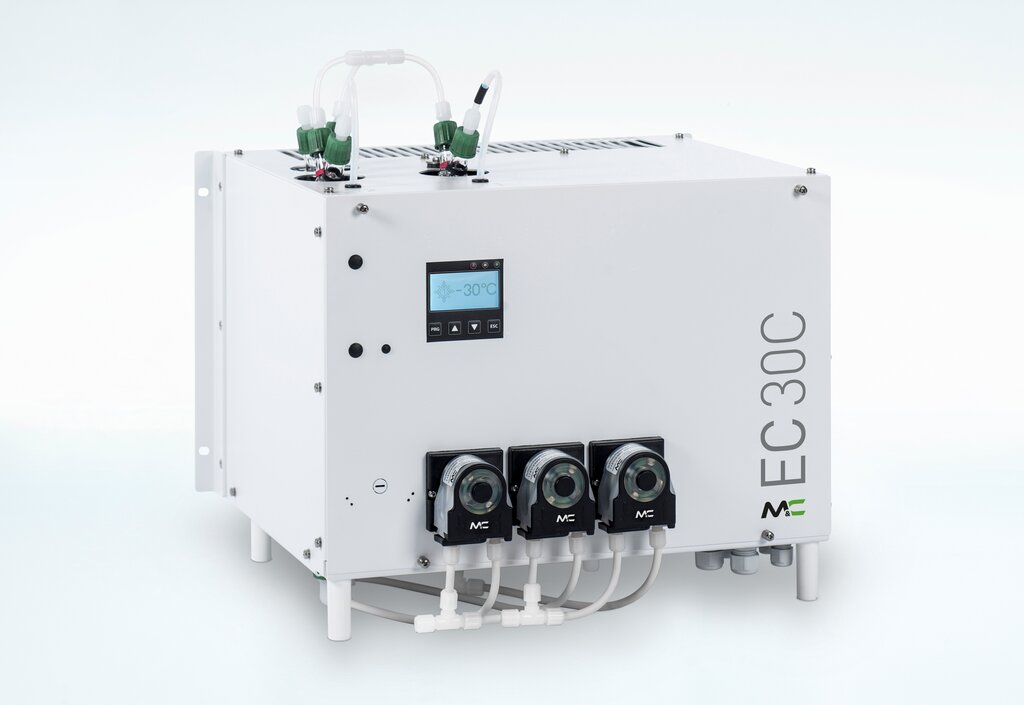

Oblique view of Ultra-Low Compressor Gas Cooler EC30C

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Cooling temperature: -30 °C, one gas path for max. flow 250 Nl, power: 230 V/50 Hz or 115 V/60 Hz

  • Applications
    The patented M&C ultralow cooler EC-30 is used in analytical technology to reduce the dew point of humid gases to a stable, very low level in order to prevent condensation and increased aerosol formation in the analyzer. When installing the cooler on site, the very low cooler outlet dew point means there is no need for a heated sample line with high energy consumption. By setting an extremely stable and low gas outlet dew point, water vapor cross-sensitivity and volumetric errors are avoided.
  • Description
    Ultra‑low gas cooler type EC30C in a wall‑mount enclosure, conversion to 19" built‑in rack version possible, housing depth: 360 mm, status alarm with changeover contacts, Jet‑Stream heat exchangers made of Duran® glass for 1 x 250 Nl/h, as 2‑stage cooler with compressor pre‑freezing stage and dual Peltier deep‑freezing unit, incl. automatic defrosting, pre‑cooling stage regulated to +2 °C and deep‑freezing stage to ‑30 °C, internal tubing out of PTFE/ PVDF, connections: sample gas: tube DN 4/6, condensate disposal: GL 25‑12 mm, power: 230 V/50 Hz. As an option, 3 peristaltic pumps (SR25.2) can be mounted in the cooler to drain condensate.
  • Product features
    Explosion-proof No
    Cooling Compressor Peltier
    Temperature -30 °C [-22 °F]
    Gas paths 1
    Flow rate/gas path > 150 Nl/h
    Material Glass
    Power supply 220‒240 V

Options & spare parts
Ultra-Low Compressor Gas Cooler EC30C

Here you get an overview of suitable options & spare parts

Product options

Options
Ultra-Low Compressor Gas Cooler EC30C

Configure the product in 4 steps

Was frequently viewed

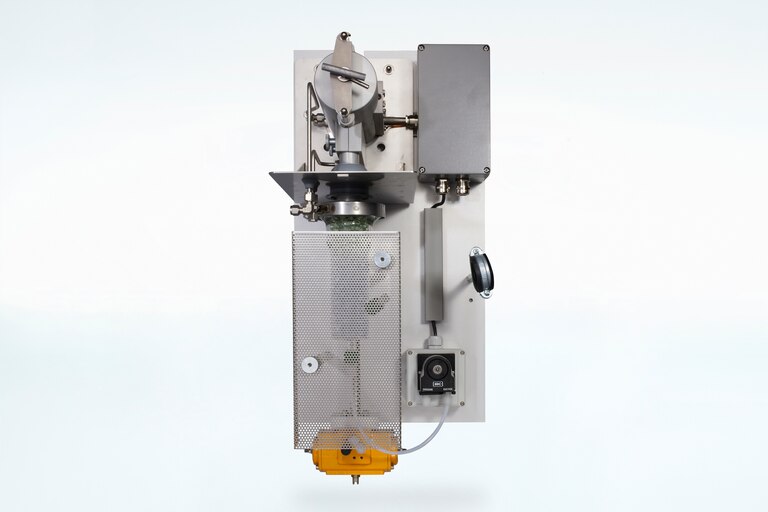

Frontal view of Gas Sample Probe SP2000-H320/S

Gas Sample Probe SP2000-H320/S

20S5000

  • Explosion-proof
    • No
  • Heating
    • Yes
  • Temperature
    • 320 °C [608 °F]
  • Filter surface
    • Medium
  • Shutoff/blowback
    • No
  • Calibration
    • No
  • Portable
    • No
  • Power supply
    • 220‒240 V
  • Material
    • Stainless steel

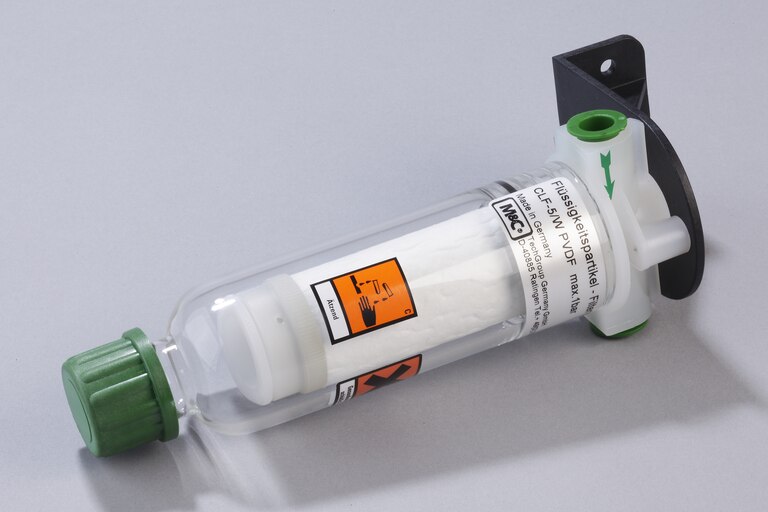

Oblique view of horizontal Liquid Particle Filter CLF-5/W
