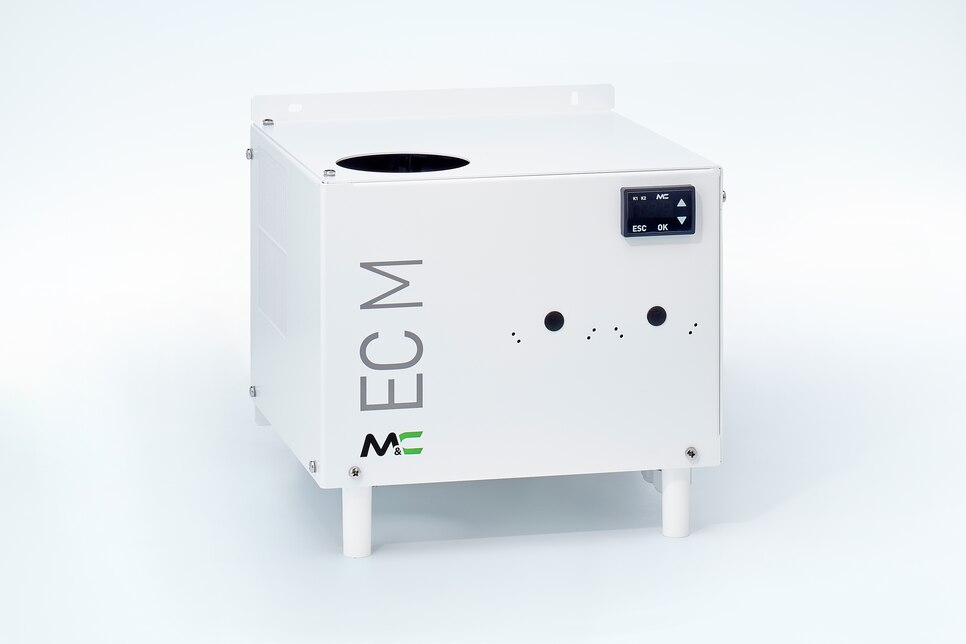

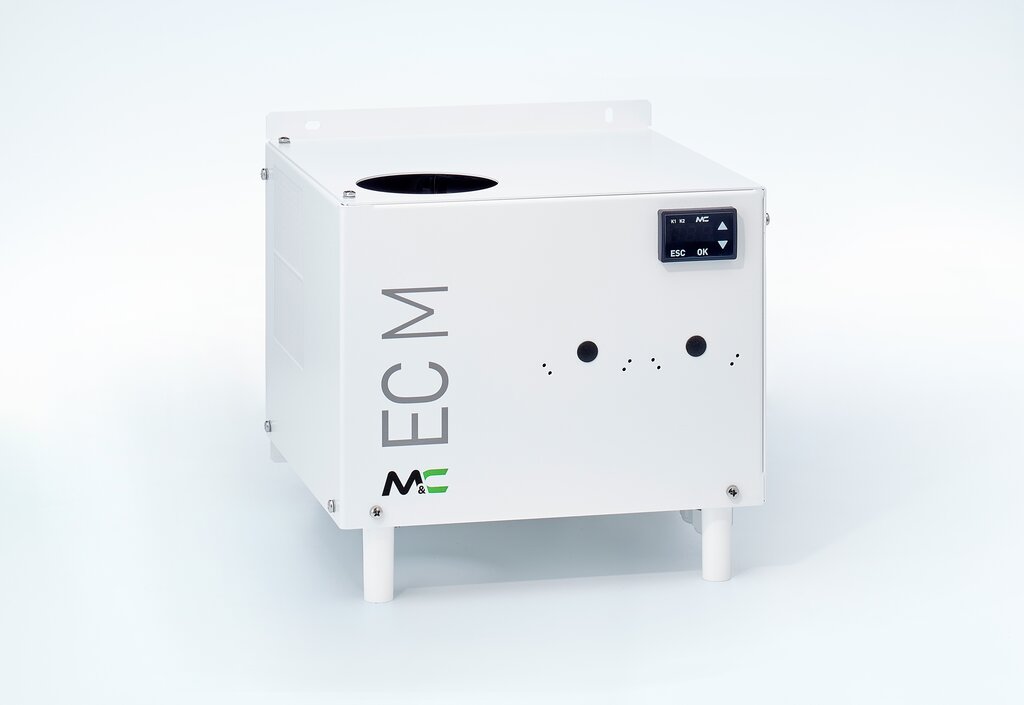

Compressor Gas Cooler ECM-1

Part No.: 02K7500XA

Product features

  • Compressor gas cooler for 1 Jet-Stream heat exchanger with a gas flow rate of max. 250 Nl/h
  • Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
  • With a total cooling capacity of 144 kJ/h at +10 to 50 °C [+50 to 122 °F] ambient temperature
  • Ambient temperature up to +50 °C [+122 °F]
  • With configurable status alarm contact
  • Compact and lightweight wall-mounting housing
  • Power: 115 V
  • Optionally: 1 Jet-Stream heat exchanger, peristaltic pump SR25.2, different gas and condensate connections depending on heat exchanger type

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    One or two gas paths, max. flow: 1 x 250 Nl/h or 2 x 150 Nl/h, different materials of heat exchangers, power: 230 V/50 Hz or 115 V/60 Hz - Without heat exchangers! Selection in Options" -"

  • Applications
    The M&C gas coolers ECM are used in gas analysis technology to lower the dew point of humid gas in order to prevent condensation in the analyzer(s). An extremely stable and low gas outlet dew point minimizes water vapor cross-sensitivity and volumetric errors.
  • Description
    Compressor gas cooler type ECM‑1 in wall‑mount version, housing depth: 260 mm, prepared for 1 Jet‑Stream heat exchanger with 250 Nl/h, high and low‑temperature alarm window as well as sample gas outlet dew point adjustable via the integrated electronic controller, factory‑set to +5 °C, with 1 contact output, thermometer with digital display: ‑10/+50 °C, power: 115 V/60 Hz, CSA us
  • Product features
    Explosion-proof No
    Cooling Compressor
    Temperature > 2 °C [> 28.4 °F]
    Gas paths 1
    Flow rate/gas path > 150 Nl/h
    Material Selectable
    Power supply 110‒120 V
