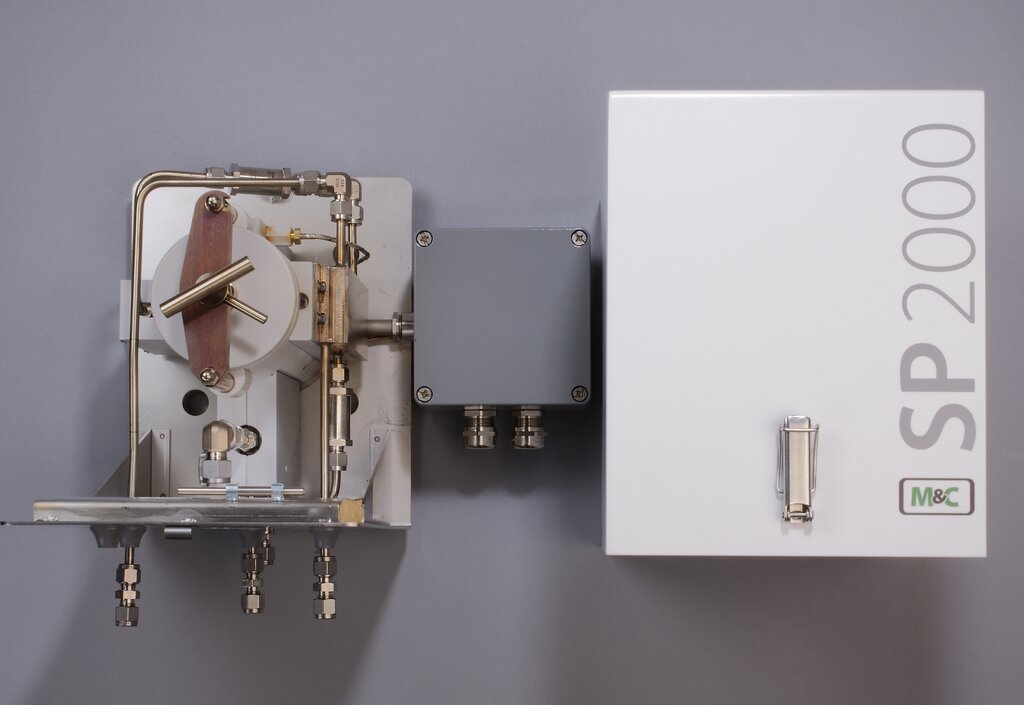

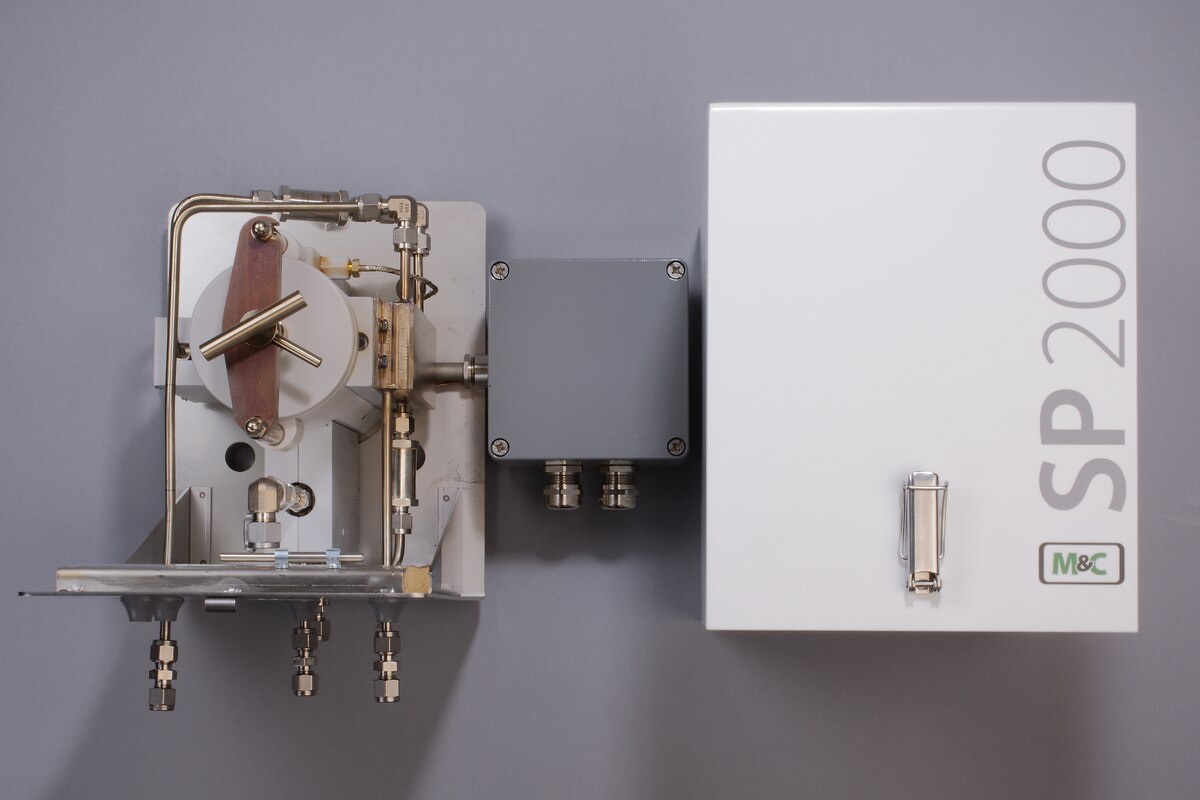

Gas Sample Dilution Probe SP2000-H/DIL

Part No.: 20S4002

Product features

  • Heated gas sample dilution probe for sampling and dilution of process gas
  • With a dilution ratio of 30:1 as standard, optionally in the range from 10:1 to 500:1
  • Dilution gas pre-heater preheats the dilution gas to the sample probe temperature
  • Dilution unit with critical orifice is located in the heated part of the sample probe
  • With test gas connection at the sample probe
  • Based on gas sample probe SP2000H
  • Filter housing and mounting flange made of stainless steel can be heated up to max. 180 °C [356 °F]
  • Ceramic filter element with a filter porosity of 2 µm
  • Including weather protective cover
  • Easy installation and low maintenance
  • Low dead volume
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, quartz glass, Viton®, ceramic
  • Optionally: add-on set A with 1 precision pressure controller and 2 vacuum pressure gauges; control panel S with 1 pressure controller and 2 pressure gauges, 1 flow meter and 2 shut-off valves

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Heated from 0 to 180 °C, power: 230 V/50 Hz or 115 V/60 Hz

  • Applications
    The electrically heated M&C dilution probe is used in such processes, where the measuring procedure or the handling of the process gas requires the dilution of the sample gas or the component(s) to be measured, e.g. for extremely toxic gases, for moisture or emission measurement in flue gases. Since the M&C dilution probe SP2000H/DIL... is based on the well-proven M&C gas sample probe SP2000H, a variety of applications requiring special filter techniques, materials, etc. can be handled without any problems with this dilution probe.
  • Description
    Gas sample dilution probe type SP2000‑H/DIL with external ceramic filter type S‑2K150, filter porosity: 2 µm, electrically heated external filter from 0 to 180 °C, adjustable by an integrated thermostat, high‑temperature limiter with reset key responding at +30 °C above Tset and low‑temperature alarm with potential‑free status‑alarm contact at ‑30 °C below Tset, incl. weather protection shield with insulation, power: 230 V/50 Hz, 800 W, mounting flange: DN 65 PN 6B with G 3/4" f connection, sample gas OUT: 8‑mm‑tube, material: SS 316Ti, ceramic, Viton®, dilution ratio to be indicated with the order
  • Product features
    Heating Yes
    Temperature 180 °C [356 °F]
    Shutoff/blowback No
    Power supply 220‒240 V
