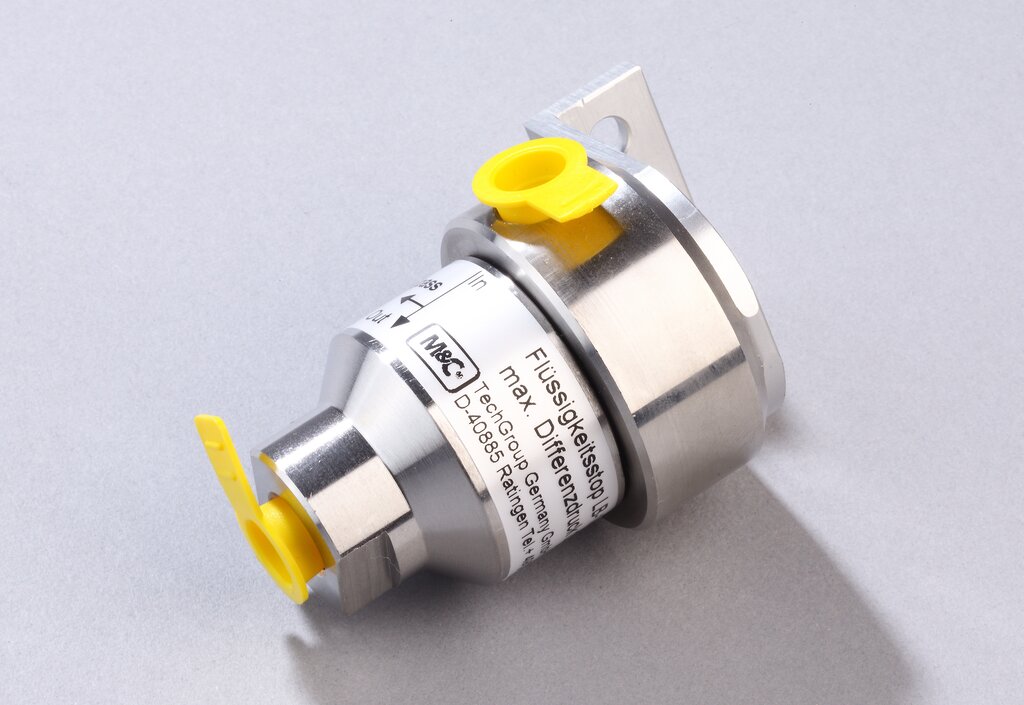

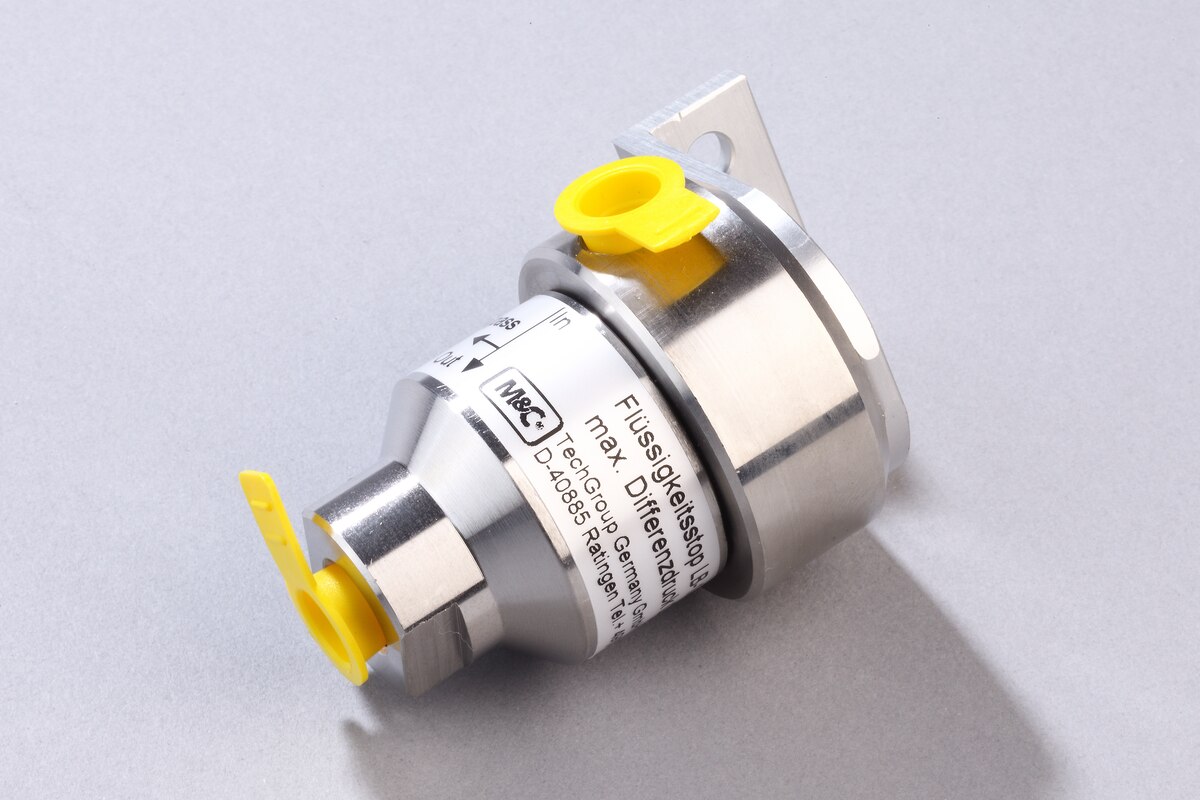

Liquid Stop LB-1/SS

Part No.: 03F4000

Product features

  • Safe protection against liquid ingress
  • Reliable separation of condensate
  • Gas pressure: 0.3–10 bar abs., ∆P max. 0.5 bar
  • Temperature sample gas: max. +100 °C [+212 °C]
  • Easy change of the hydrophobic protective membrane
  • Including wall-mounting bracket
  • Material of sample-contacting parts: stainless steel, FKM, PTFE, Polyester, glass

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For protecting gas analyzers against liquids, material: stainless steel

  • Applications
    The M&C liquid stop LB-1... is suitable for protecting analyzers against the inrush of liquids from the upstream sample gas conditioning system. Severe damages of the analyzer can thereby be avoided. The most effective position of the liquid stop LB-1... is downstream the gas conditioning unit, directly in front of the flow meter of the analyzer or gas chromatograph.
  • Description
    Liquid stop type LB‑1/SS with bypass function, connection: 1/8" NPT female, material: SS 316 Ti, PTFE, Viton®

Options & spare parts
Liquid Stop LB-1/SS

Here you get an overview of suitable options & spare parts

Spare parts

Spare parts
Liquid Stop LB-1/SS

Configure the product in 4 steps

Was frequently viewed

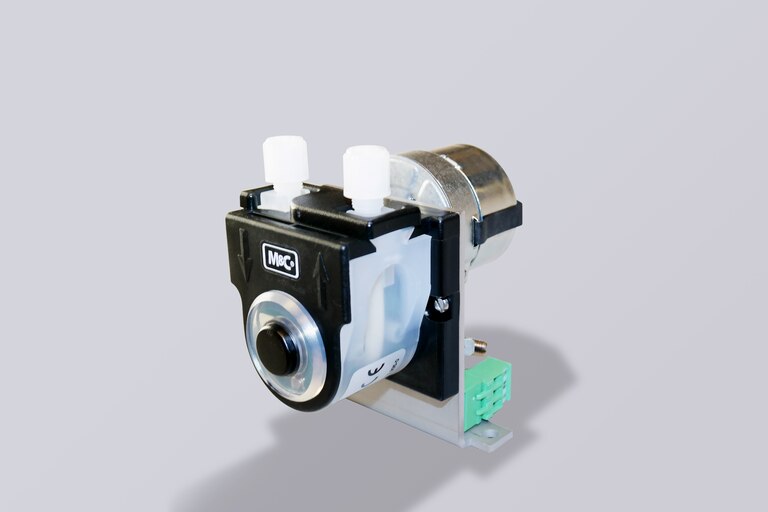

Oblique view of Peristaltic Pump SR25.3-W
