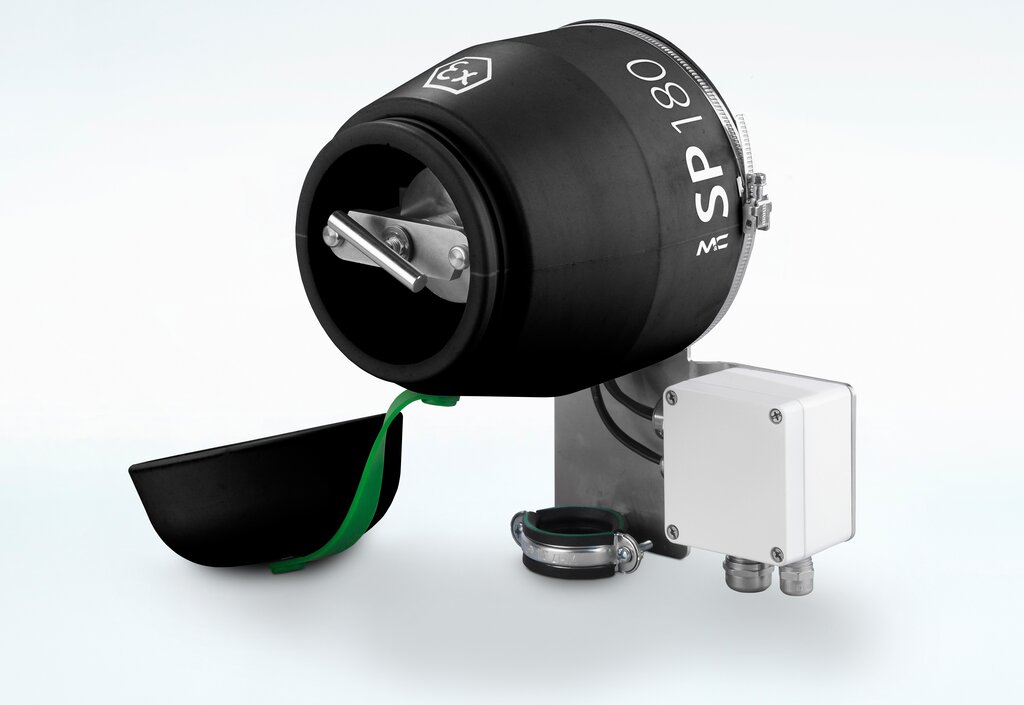

Gas Sample Probe SP180-H-EX1-T4, Zone 1

Part No.: 02S1870

Product features

  • Compact, heated gas sample probe for sampling from zones with explosive gas
  • Approval according to ATEX for sampling from gas Ex zone 1 and temperature class T4
  • With innovative weather protection cover for outdoor mounting
  • With test gas connection according to EN 14181
  • Self-regulating probe heating from 90 to 120 °C [194 to 248 °F] corresponding to temperature class T4
  • With low-temperature alarm contact: < 90 °C [194 °F], NO
  • With compact ceramic filter element, other materials available
  • Small dead volume and fast response time
  • Easy installation and low maintenance
  • Power: 110–240 V
  • Material of sample-contacting parts: stainless steel, FKM, ceramic
  • Optionally: sample tube, pre-filter

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C sample probes version SP180EX1 are used for continuous sampling of explosive gases (Ex zone 1) from dust-loaded, high-temperature and/or humid processes. The probes can be mounted in Ex zone 1.
  • Description
    Gas sample probe type SP180‑H‑EX1 T4, ATEX certified version for installation in Ex zone 1 and sampling from zone 1 with the marking: Ex II 2G eb mb IIC T4 Gb EXAM BVS 18 ATEX E 043. IECEx BVS 18.0034., external ceramic filter element type S‑2K (75 mm), filter porosity: 2 µm, external filter electrically heated to 100 °C with self‑regulating heating elements, low‑temperature alarm with potential‑free contact output at ‑50 °C below Tset, including weather protection shield for outdoor use, power: 110 V‑240 V, 50/60 Hz, 400 W, mounting flange: DN 65 PN 6B with connection thread G 3/4" f, material: SS 316 Ti, 316 L, Viton®, ceramic, connection: sample gas outlet: tube screw fitting DN 4/6, calibration gas connection: tube screw fitting DN 4/6 with blind cap
  • Product features
    Explosion-proof Yes
    Heating Yes
    Temperature 120 °C [248 °F]
    Filter surface Small
    Shutoff/blowback No
    Calibration No
    Portable No
    Power supply 110‒120 V 220‒240 V
    Material Stainless steel

Options & spare parts

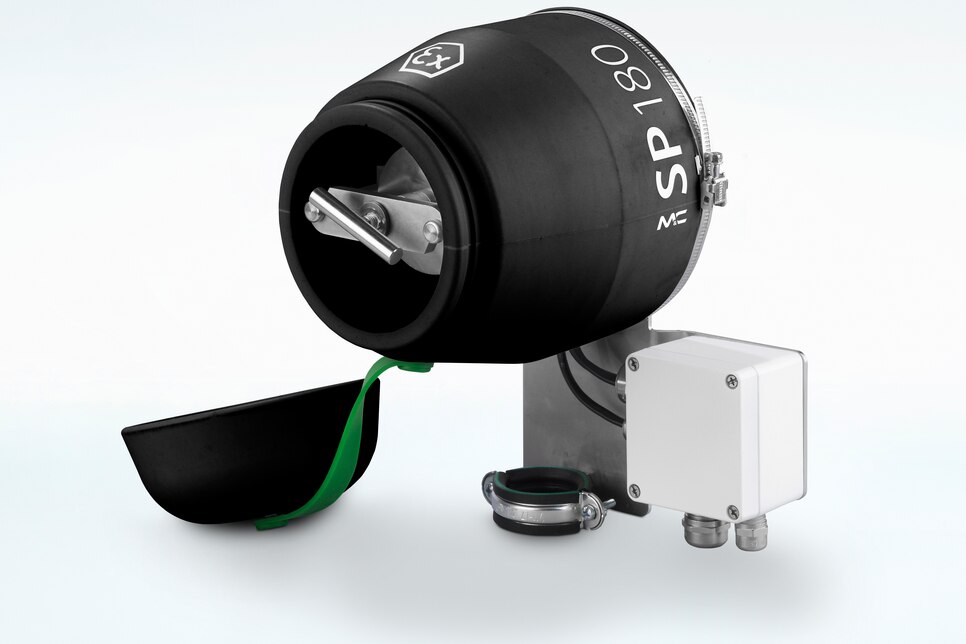

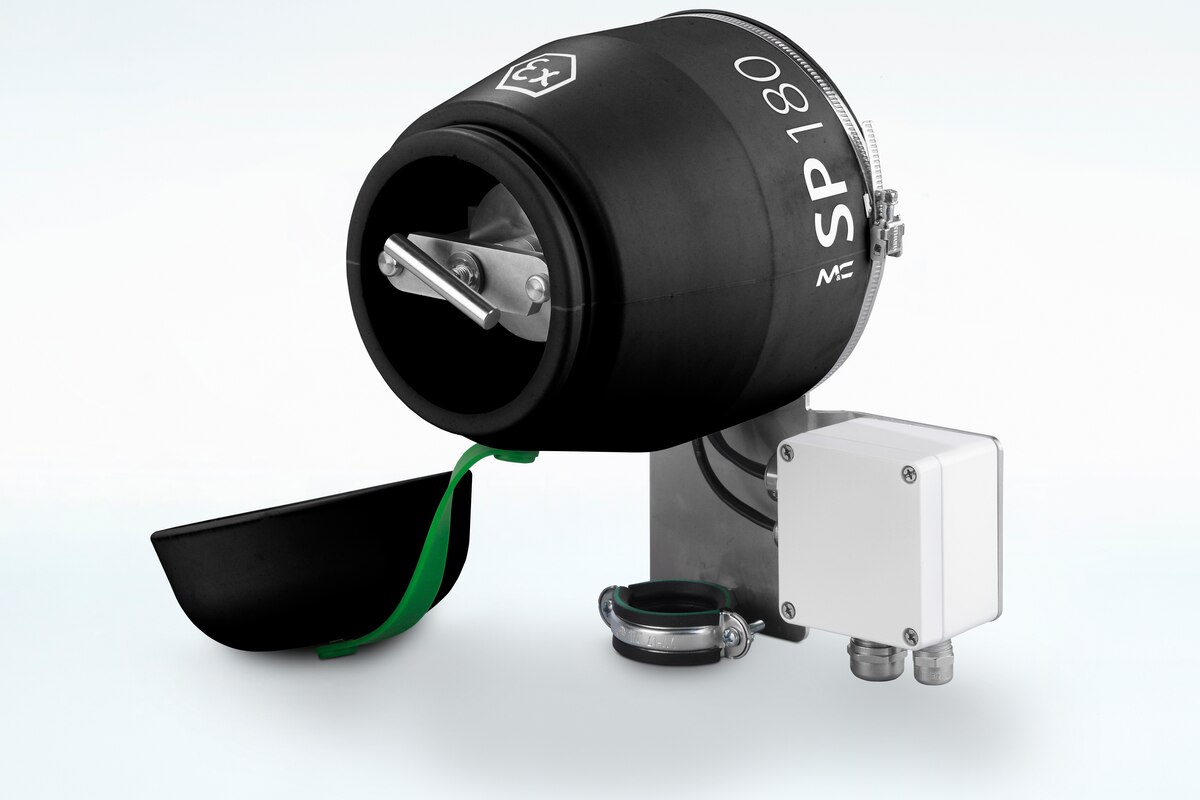

Gas Sample Probe SP180-H-EX1-T4, Zone 1

Here you get an overview of suitable options & spare parts

Spare parts

Spare parts
Gas Sample Probe SP180-H-EX1-T4, Zone 1

Configure the product in 4 steps

Was frequently viewed

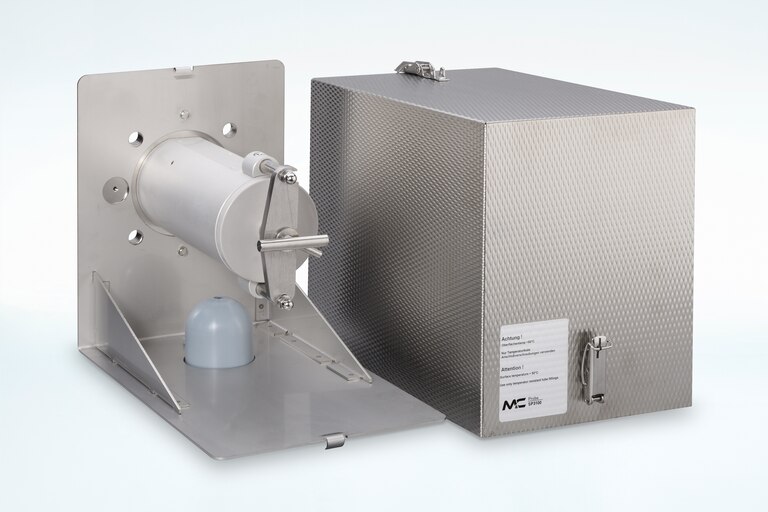

Oblique view of Gas Sample Probe SP3100/Ex, Zone 1 and weather protective cover
