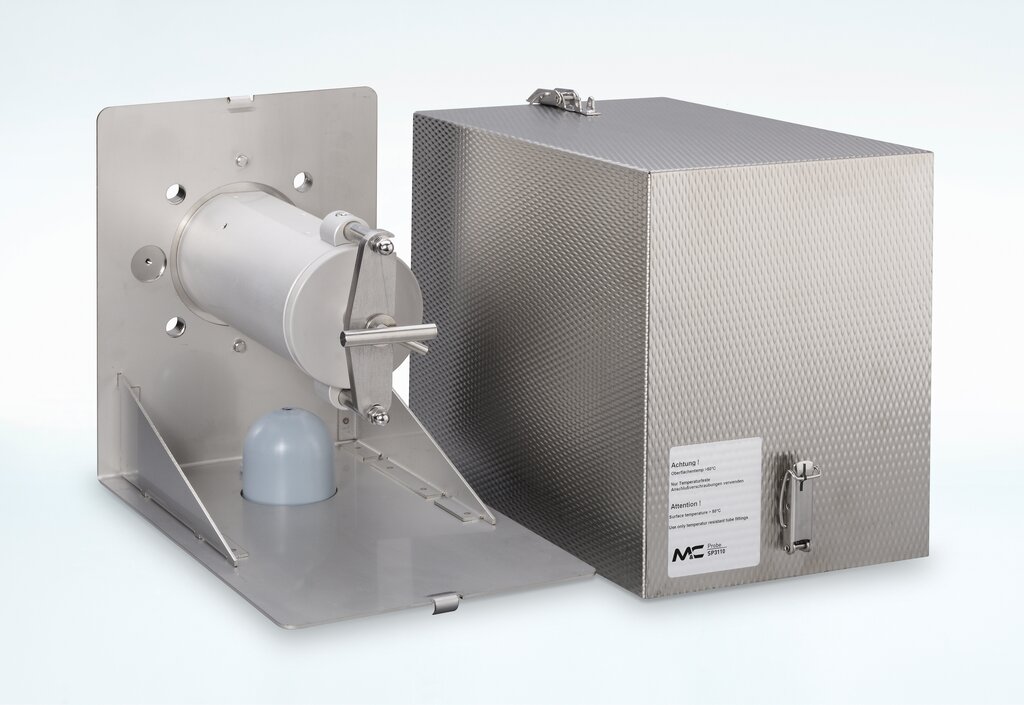

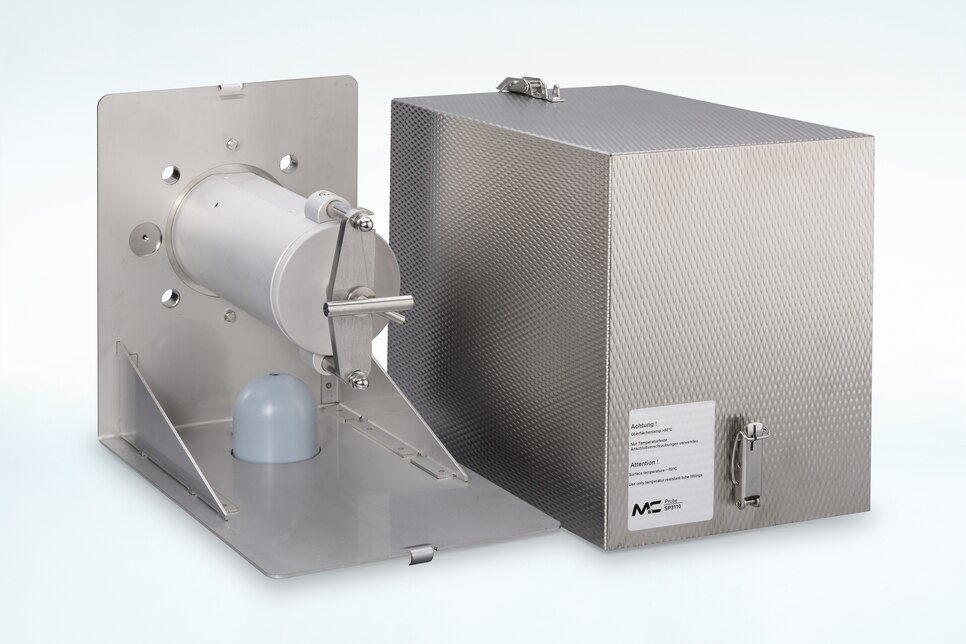

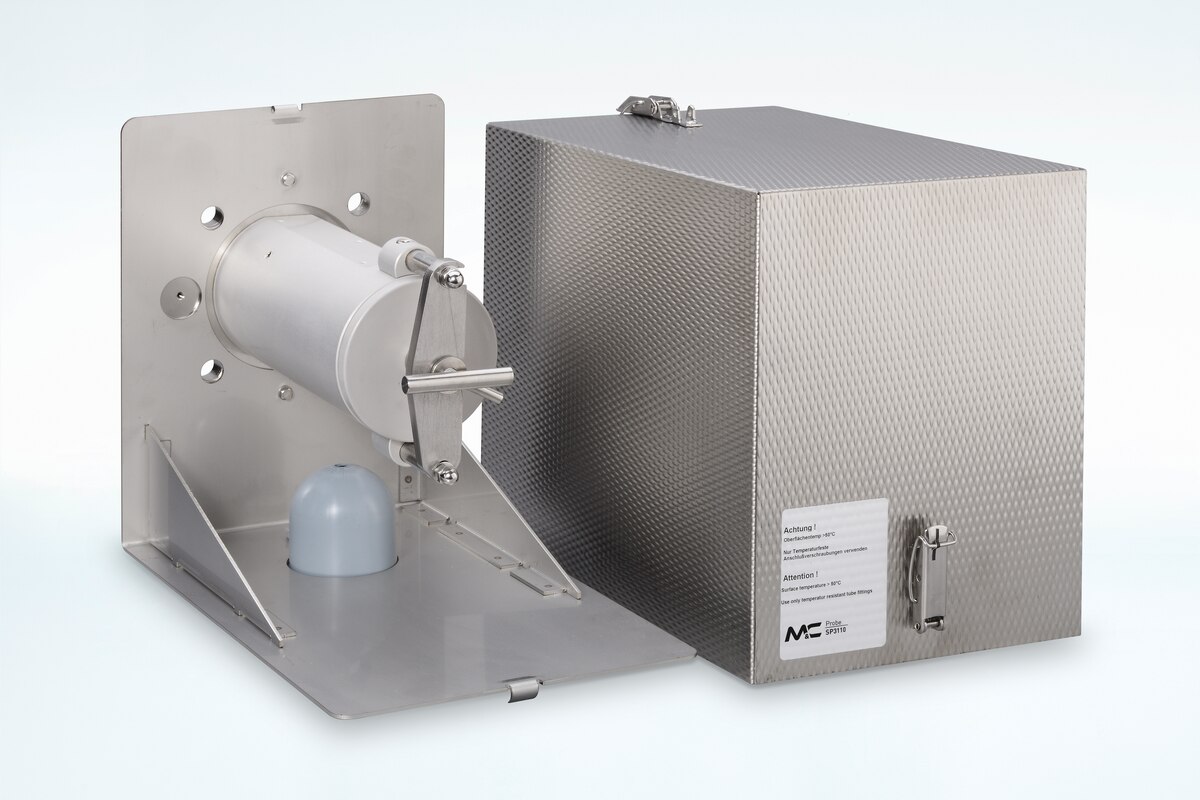

Gas Sample Probe SP3110/Ex, Zone 1

Part No.: 20S5610

Product features

  • Gas sample probe for sampling from zones with explosive gas
  • Approval according to ATEX for sampling from gas Ex zones 1 and 2
  • Approval according to ATEX for mounting in Ex zones 1, 2 or 21, 22
  • Stainless steel filter element, ceramic optionally available
  • Sealing material for filter housing lid and flange: graphite
  • Adaption to nearly all process conditions due to its compact and modular design
  • Easy installation and low maintenance
  • Low dead volume
  • Material of sample-contacting parts: stainless steel, graphite
  • Optionally: different valves available for back-purging, test gas feeding or sample gas outlet shut-off
  • Optionally: sample tube, pre-filter with or without extension tube, self-regulating or controlled heater, back-purge unit, 2-way or 2/3-way ball valve in the probe inlet, pneumatic actuator for a ball valve, second sample gas outlet, spun-glass cartridge
