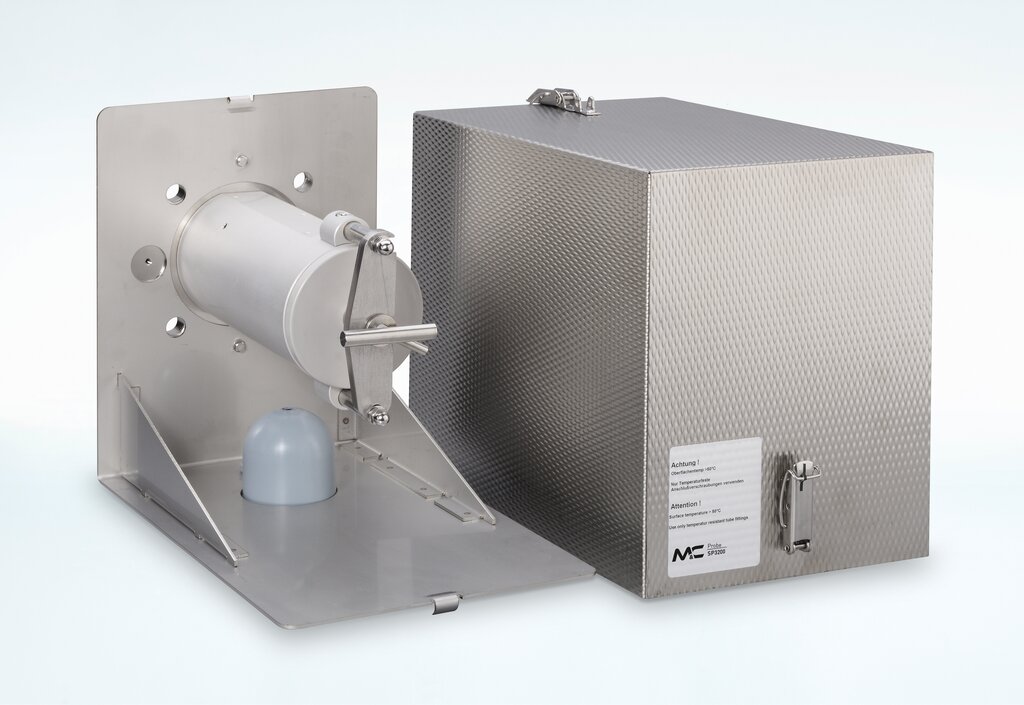

Gas Sample Probe SP3200/Ex, Zone 2

Part No.: 20S5700

Product features

  • Gas sample probe for sampling from zones with explosive gas
  • Approval according to ATEX and CSA for sampling from/mounting in gas Ex zone 2 or 22 and Class I Division 2, respectively
  • Stainless steel filter element, ceramic optionally available
  • Sealing material for filter housing lid and flange: graphite
  • Adaption to nearly all process conditions due to its compact and modular design
  • Easy installation and low maintenance
  • Low dead volume
  • Material of sample-contacting parts: stainless steel, graphite
  • Optionally: different valves available for back-purging, test gas feeding or sample gas outlet shut-off
  • Optionally: sample tube, pre-filter with or without extension tube, heater type HEX 5, back-purge unit, 2-way or 2/3-way ball valve in the probe inlet, pneumatic actuator for a ball valve, second sample gas outlet, spun-glass cartridge

Certifications

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview
    for sampling from Ex zone 2, with stainless steel filter element outside, optionally: ceramic filter element, heating, different possibilities of back-purging and shutting off, sample tubes and pre-filter
  • Applications
    The M&C sample probes version SP3200 are used for continuous sampling of explosive gases (Ex zone 2) from dust-loaded, high-temperature and/or humid processes. The probes can be mounted in Ex zone 2.
  • Description

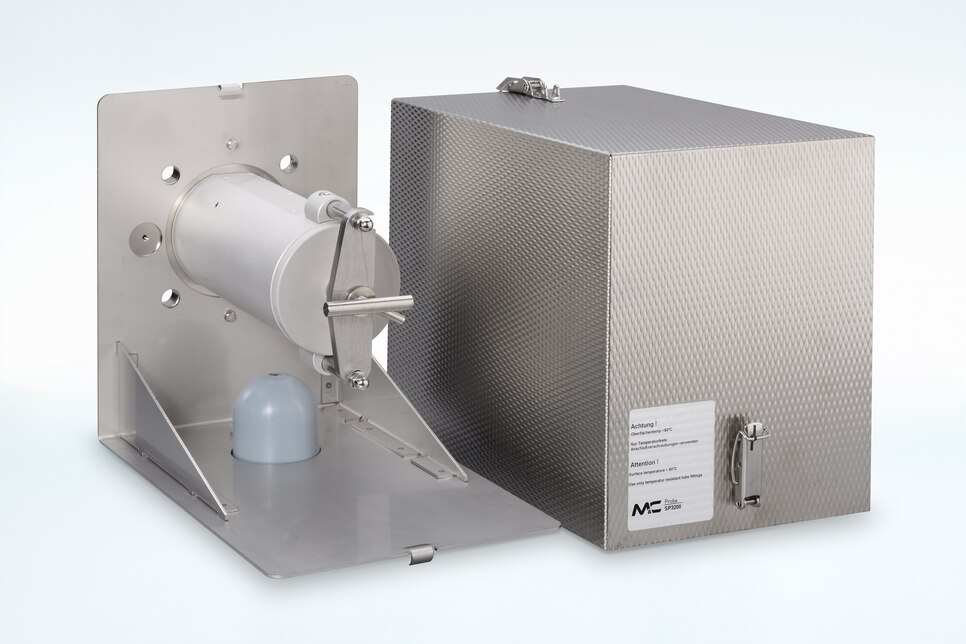

    Gas sample probe type SP3200/Ex for zone 2 with weather protection shield, version for mounting in Ex zone 2 and sampling from zone 2 with protection class according to ATEX II 3 G Ex ec nC IIC Gc, ATEX II 3 D Ex tc IIIC Dc and ClassI, Div2 A/B/C/D T zz, external filter element type S‑3SS150 made of stainless steel, filter porosity: 3 µm, filter element seal and cover seal out of graphite, weather protection shield out of stainless steel, flange DN 65 PN 6
  • Product features
    Explosion-proof Yes
    Heating optional
    Temperature 180 °C [356 °F]
    Filter surface Medium
    Shutoff/blowback No
    Calibration No
    Portable No
    Power supply Without
    Material Stainless steel
