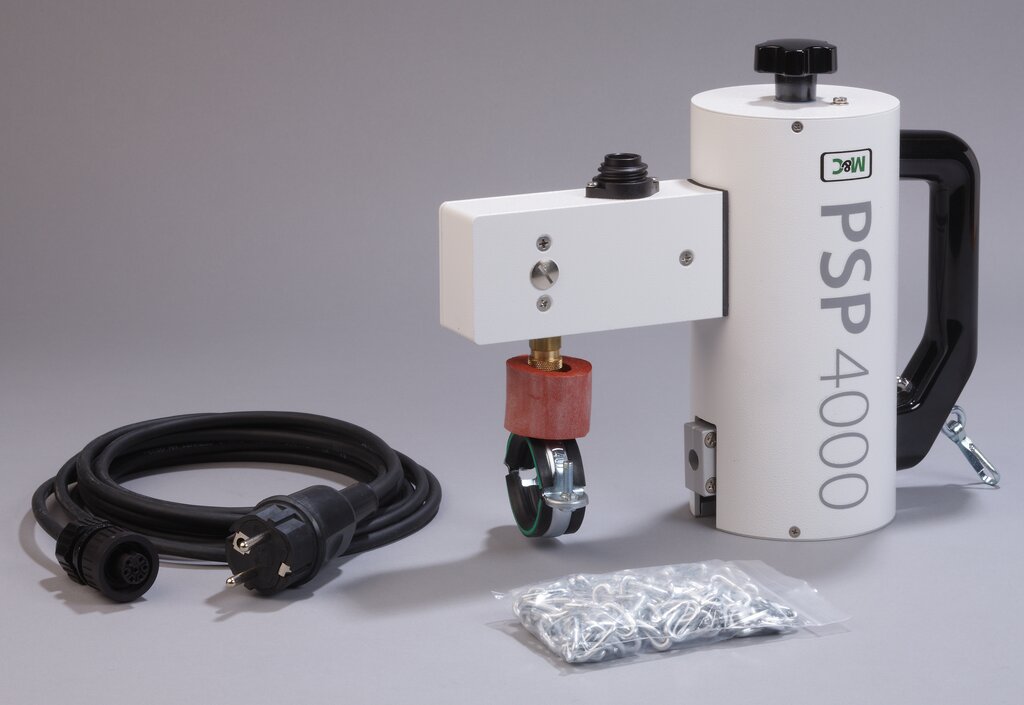

Gas Sample Probe PSP4000-H

Part No.: 40S1000

Product features

  • Portable, heated gas sample probe
  • Compact, easy to handle and light with a weight of approx. 3.5 kg [7.7 lbs]
  • Regulated heating from 100 to 180 °C [212 to 356 °F]
  • With ceramic filter element, filter porosity: 2 µm
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, FKM, ceramic
  • Optionally: heated or unheated sample tube, pre-filter, adapters, threaded fittings, spun-glass cartridge, accessories for stationary probe mounting, electrically heated line, carrying case

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    Previously, gas sample probes designed for stationary use had to be used for control measurements carried out at different locations. The weight and handiness of such units often caused problems for technicians involved in mobile measurements. Now the light, handy and heated gas sample probe PSP 4000-H has been developed as a logical complement to the portable M&C sample gas conditioning systems. Despite its compact design, the unit guarantees a full range of functions.
  • Description

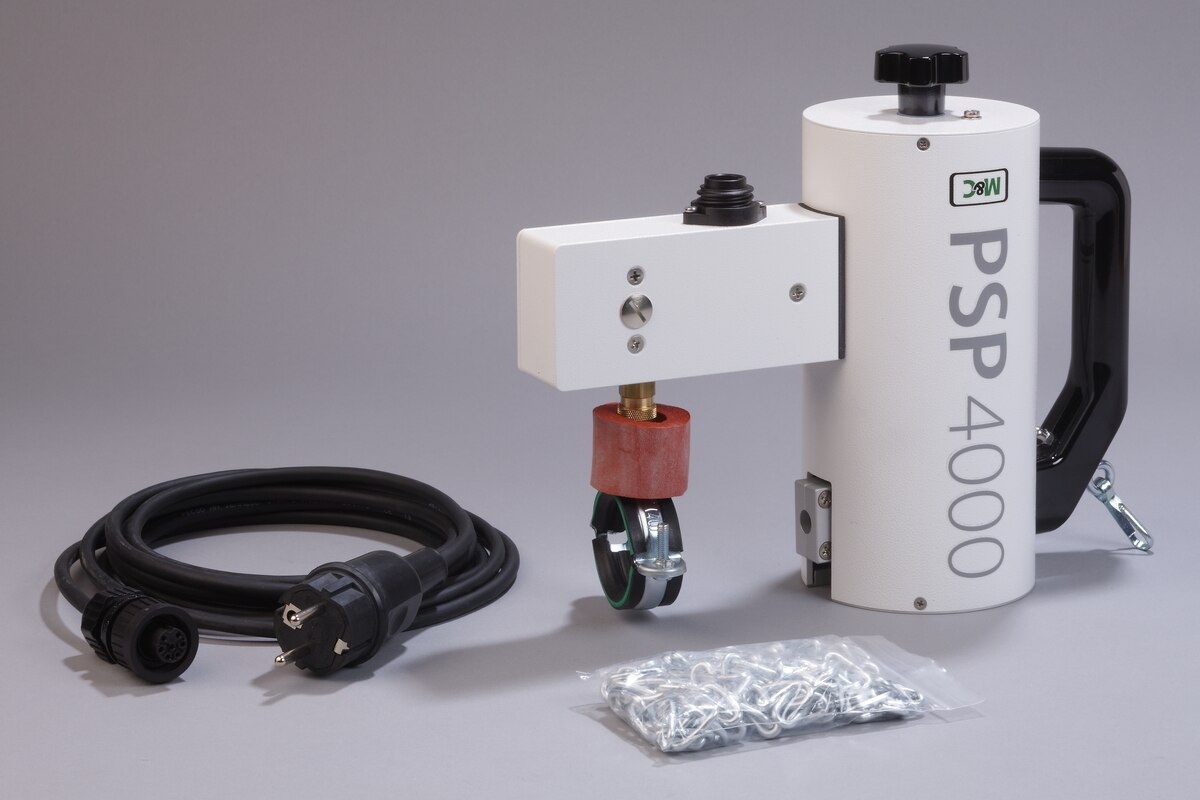

    Portable gas sample probe type PSP4000‑H with external ceramic filter type S‑2K, filter porosity: 2 µm, electrically heated external filter 100 to 180 °C adjustable by an integrated thermostat with indicator light (standard: 180 °C), 7‑pin plug with 4 m connection cable and mains plug, thermally insulated housing with carrying handle and chain incl. mounting clamp for connecting the heated sample line, gas inlet: G 3/8" f, gas outlet: G 1/8" NPT with tube connector 6 mm, power: 230 V/50 Hz, 200 W, material: SS 316Ti, ceramics, Viton®
  • Product features
    Explosion-proof No
    Heating Yes
    Temperature 180 °C [356 °F]
    Filter surface Small
    Shutoff/blowback No
    Calibration No
    Portable Yes
    Power supply 220‒240 V
    Material Stainless steel

Options & spare parts
Gas Sample Probe PSP4000-H

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Gas Sample Probe PSP4000-H

Options
Gas Sample Probe PSP4000-H

Configure the product in 4 steps

Was frequently viewed

Oblique view of horizontal Sample Tube PSP4000/SS and sealing ring made of PTFE

Sample Tube PSP4000/SS, 6mm

40S9020

  • Material
    • Stainless steel
  • Explosion-proof
    • Yes
  • Heating
    • No
  • Portable
    • Yes
  • Length
    • 1000 mm [39.4"]
  • Power supply
    • Without

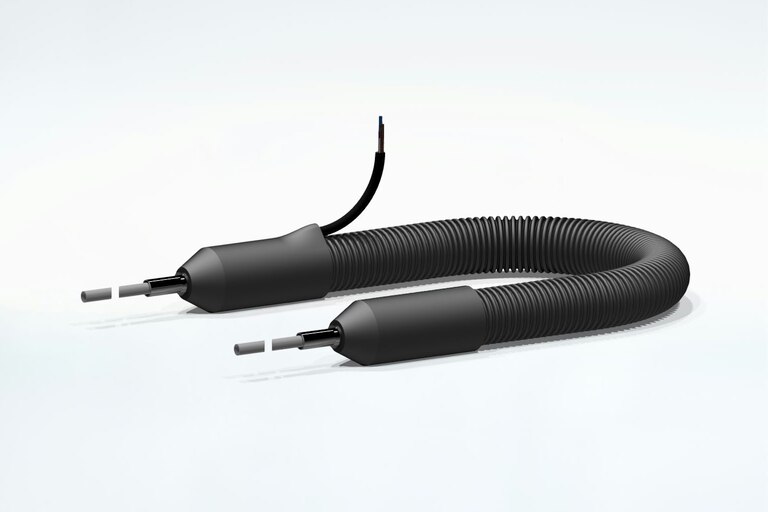

Oblique view of horizontal Heated Sample Line PSP4M4/6
