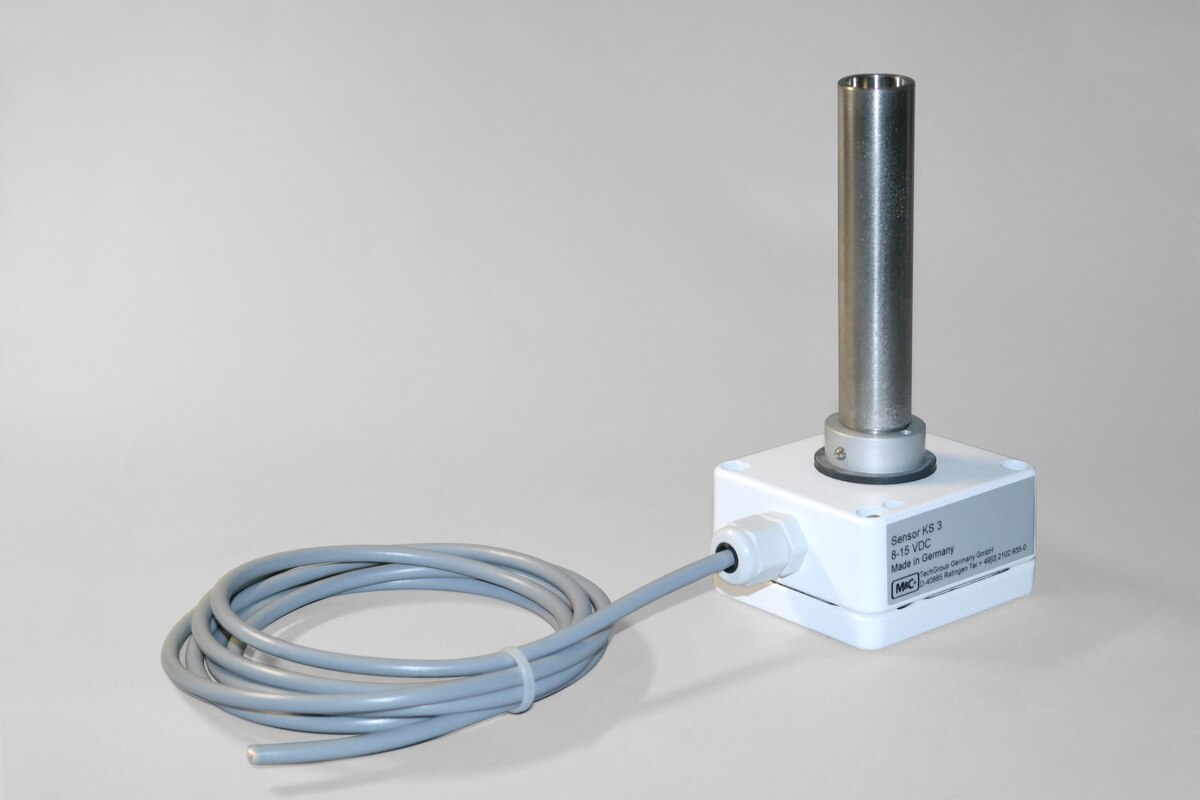

Liquid Alarm Sensor KS3/SS PEEK

Part No.: 03E4180

Product features

  • Liquid sensor for conductive and non-conductive media
  • Can be integrated in M&C stainless steel universal filters with 1/2" NPT condensate connection
  • Connection: ø 18 mm
  • Operating pressure: max. 11 bar abs.
  • With 1.5 m electrical connecting cable
  • Material of sample-contacting parts: PEEK, stainless steel, Chemraz®

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For non-conductive media. The new liquid alarm sensor type KS3 replaces the KS2. The KS3 is an adequate replacement for the KS2.Ex model. The former KS2 plastic enclosure has been replaced by a rugged aluminium case.

  • Applications
    Liquid alarm sensors are used in gas sample conditioning systems for monitoring gas cooling and condensate drain-off devices in order to provide protection for downstream analysis instruments. The monitoring device KS3 reliably signals the penetration of non- conductive (e.g. alcohol) or conductive (e.g. water) liquid in the case of cooling or condensate drain-off equipment being defective, thus avoiding expensive downtime as well as high repair costs for analysis instruments. In the event of an alarm, the power supply for the sample gas pump must be switched off or a solenoid valve must be switched idle in the sample conditioning system.
  • Description
    Liquid alarm sensor type KS3/SS for non‑conductive media, diameter: 18 mm, 1.5 m connecting cable, max. operating pressure: 11 bar abs., to be installed in the filter pot type F‑120SS‑D 1/2" NPT (90F0137N) or CLF‑SS 1/2" NPT (C50009), material: PEEK, Chemraz®, stainless steel 316 Ti

Options & spare parts
Liquid Alarm Sensor KS3/SS PEEK

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Liquid Alarm Sensor KS3/SS PEEK

Options
Liquid Alarm Sensor KS3/SS PEEK

Configure the product in 4 steps
