Temperature Controller 70304G

Part No.: 01B8451

Product features

  • Electronic PID temperature controller with auto-tuning function
  • Parameters can be set at the sensor input for all common temperatur sensors
  • Suitable for controlling electrically heated M&C components with temperature sensors
  • If the controller is ordered in combination with an M&C component, the parameters will be set and the controller will be pre-programmed especially for this component
  • Built-in solid state relay with a switching capacity of 15 A
  • With LED display
  • In a wall-mount enclosure made of sheet steel with cooling block
  • Power: 230 V

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    PID self-optimizing temperature controller in a steel-sheet enclosure for different sensors e.g. for SP2000-H320/S.1, SP2000-H320/DIL, SP2000-H320/C, SP2000/PT100, SP2000/FeCuNi, SP2000/SP30 ... or SP2000/SP35…

  • Applications
    The temperature controller type 70304G is used for all heated components where the standard thermostat can be replaced by an electronic controller or where controlling by a thermostat is not possible. Moreover, it can be used for heated sample lines if a temperature alarm is required.
  • Description
    Electronic PID temp. controller type 70304G with autotuning and LED display in a wall‑mount housing IP65, made of painted sheet steel with inspection window in the cover, standard temp. sensor: Pt100, Fe‑CuNi type J, built‑in solid‑state power relay with 15 A control power, thermocouple compensation terminals for FeCuNi thermocouple (please specify type, if other thermocouples are to be connected), incl. terminal strip and cable glands, completely assembled and electrically connected, special safety monitoring function for thermocouple operation, dimensions (W x H x D): 145 x 200 x 120 mm, status signal output: 1 contact (NO) for high and low‑temperature alarm, alarm relay switching capacity: 250 V AC, 3 A, power: 230 V/50 Hz, high‑temperature limiter with shutdown and reset function

Options & spare parts

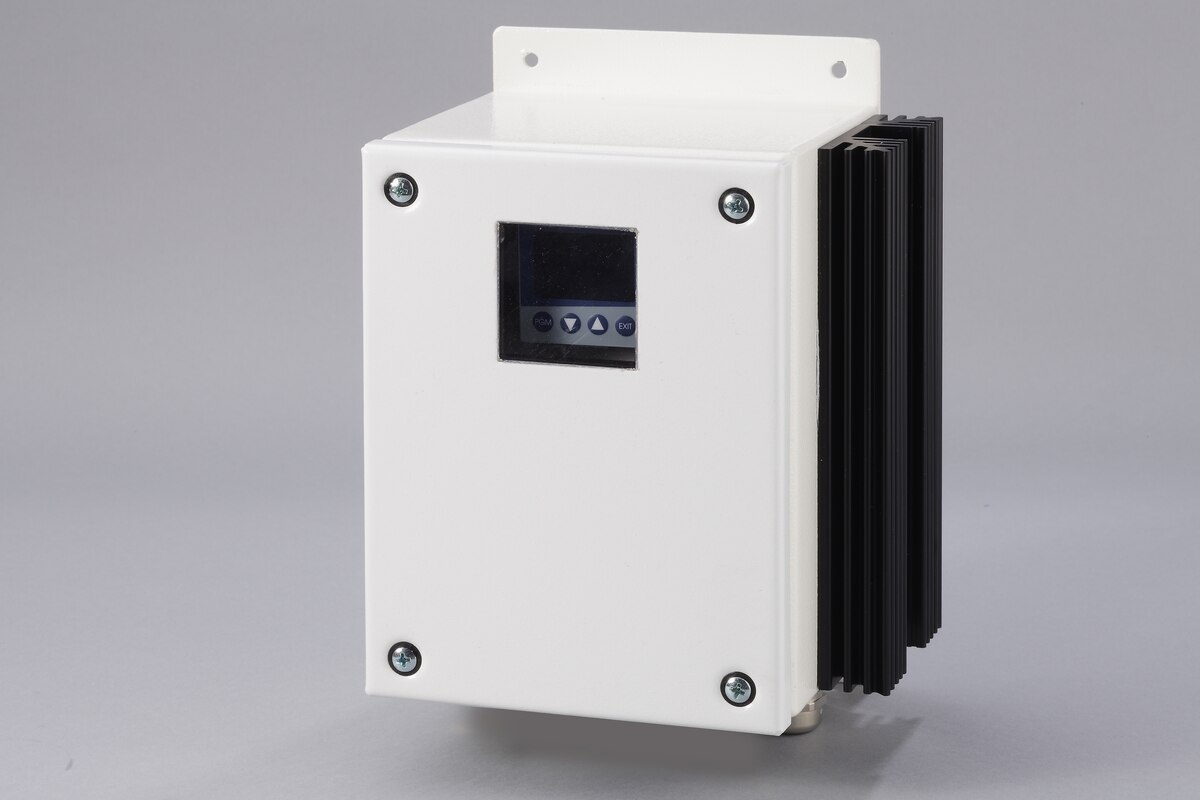

Temperature Controller 70304G

Here you get an overview of suitable options & spare parts

Spare parts

Spare parts
Temperature Controller 70304G

Configure the product in 4 steps

Was frequently viewed

Oblique view of horizontal Heated Sample Line 3M4/6-W

Heated Sample Line 3M4/6-W

03B3010W

  • Type
    • Regulated heating
  • Explosion-proof
    • No
  • Temperature
    • 200 °C [392 °F]
  • Replaceable
    • No
  • Diameter
    • DN 4/6
  • Material
    • PTFE
  • Installation
    • Flexible

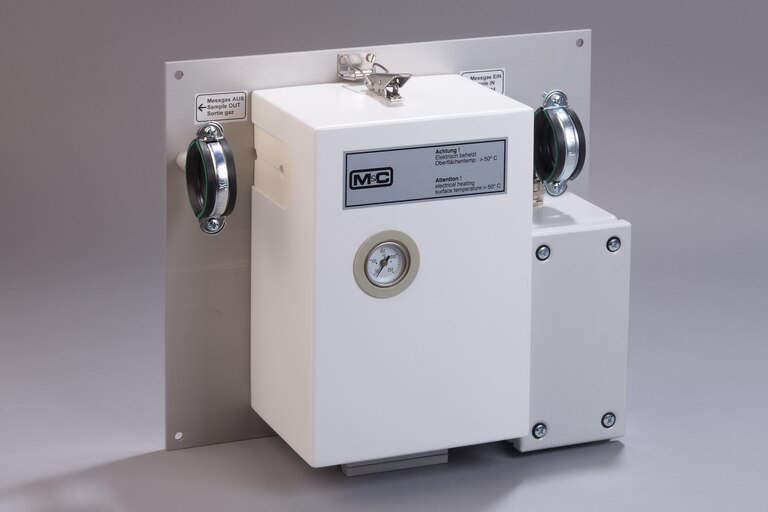

Oblique view of Universal Filter FT-3G-H2
