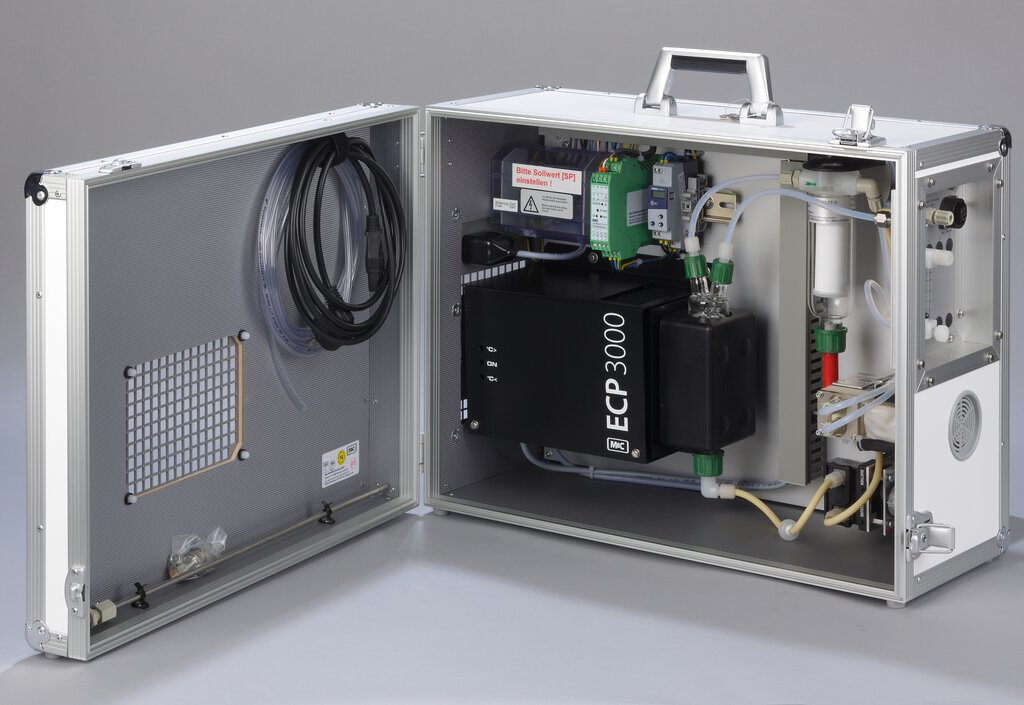

Portable Gas Conditioning System PSS5/3 incl. ECP3000-G

Part No.: 01G1500A

Product features

  • Portable gas conditioning unit inside a robust aluminium-framed case
  • Gas flow rate: max. 350 Nl/h
  • Gas outlet dew point adjustable from +2 to +15 °C [+35.6 to +59 °F]
  • Dew point stability < ±0.1 °C [±0.18 °F]
  • Self‑monitoring and low maintenance
  • Ready for operation in approx. 10 minutes
  • Power: 115 V
  • Optionally: with trolley system

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C portable gas conditioning unit PSS-5... is designed to carry out precise gas analyses at different locations.The entire gas conditioning unit is housed in a robust aluminium-frame case to enable the user to carry out gas analyses quickly, reliably and with little maintenance work. The PSS-5... gas conditioning unit is suitable for variable, discontinuous use as well as for continuous operation. The components built into the PSS-5... gas conditioning unit can be used for standard applications. If you have special requirements regarding your measuring tasks, please contact us for additional or different components from our extensive range of products.
  • Description

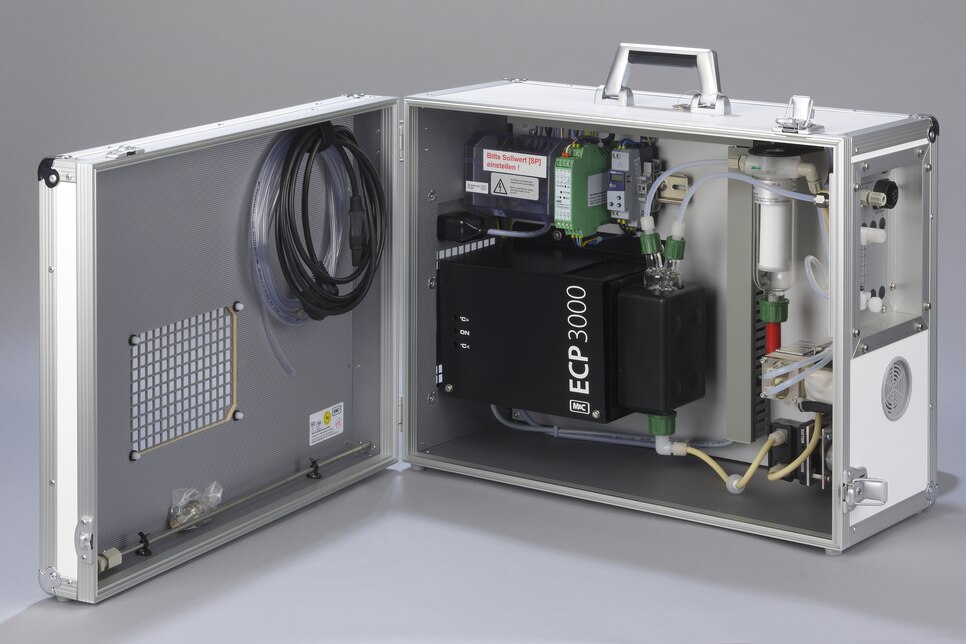

    Portable gas conditioning system type PSS5/3 for 350 Nl/h in an aluminium‑framed protective case, consisting of 0.5 m SS sample line 6 mm, PVC hose DN 4/6, gas cooler ECP3000‑G, universal filter FP‑2T, sample gas pump N9KPE, hose pump SR25.2. W with PF2 hose pre‑filter, power: 115 V/60 Hz, tubing in PTFE/PP, the sample gas pump starts when the sample gas cooler falls below +8 °C
  • Product features
    Portable Yes
    Cooling Peltier
    Gas paths 1
    Flow rate/gas path > 150 Nl/h
    Material Glass
    Power supply 110‒120 V

Options & spare parts
Portable Gas Conditioning System PSS5/3 incl. ECP3000-G

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Portable Gas Conditioning System PSS5/3 incl. ECP3000-G

Options
Portable Gas Conditioning System PSS5/3 incl. ECP3000-G
