Gas Conditioning Unit CSS-VC1, TCU

Part No.: 01G6050

Product features

  • Compact high‑performance gas conditioning unit with compressor cooler
  • With multifunctional temperature control unit (TCU)
  • Individually configurable and completely pre-installed according to your specifications
  • Self‑monitoring and low maintenance
  • Gas flow rate: max. 1 x 250 Nl/h
  • Dew point stability < ±0.1 °C [±0.18 °F]
  • Outlet dew point adjustable from +2 to +7 °C [+35.6 to +44.6 °F]
  • Power: 230 V
  • Configurable: heat exchanger, sample gas pump, flow meter, sample gas filter with integrated liquid alarm sensor, peristaltic pump and flow alarm sensor with electronic controller

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The units CSS-VC... provide a completely pre-installed compact high-performance sample gas conditioning system for continuous use. Due to the multi-functional expandable control unit TCU and a large variety of additional options, the gas conditioning units can be adapted to the most diverse requirements of continuous gas analysis technology and therefore assume tasks of complete analysis systems. Their compact construction only requires little space. The CSS-VC units are ready for operation in just a few minutes. This makes time-consuming procurement of individual components and assembly superfluous.
  • Description

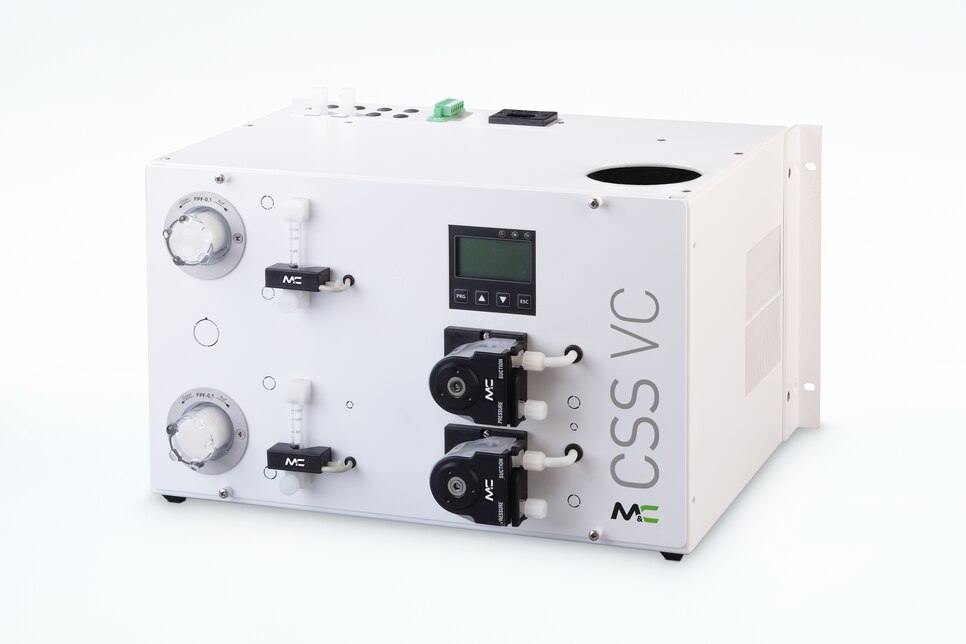

    Gas conditioning unit type CSS‑VC1 with controller TCU, prepared for 1 gas path 250 Nl, in a sheet steel case, consisting of: TCU controller and compressor gas cooler, electronically regulated to +5 °C, power: 230 V/50 Hz
  • Product features
    Portable No
    Cooling Compressor
    Gas paths 1
    Flow rate/gas path > 150 Nl/h
    Material Selectable
    Power supply 220‒240 V
