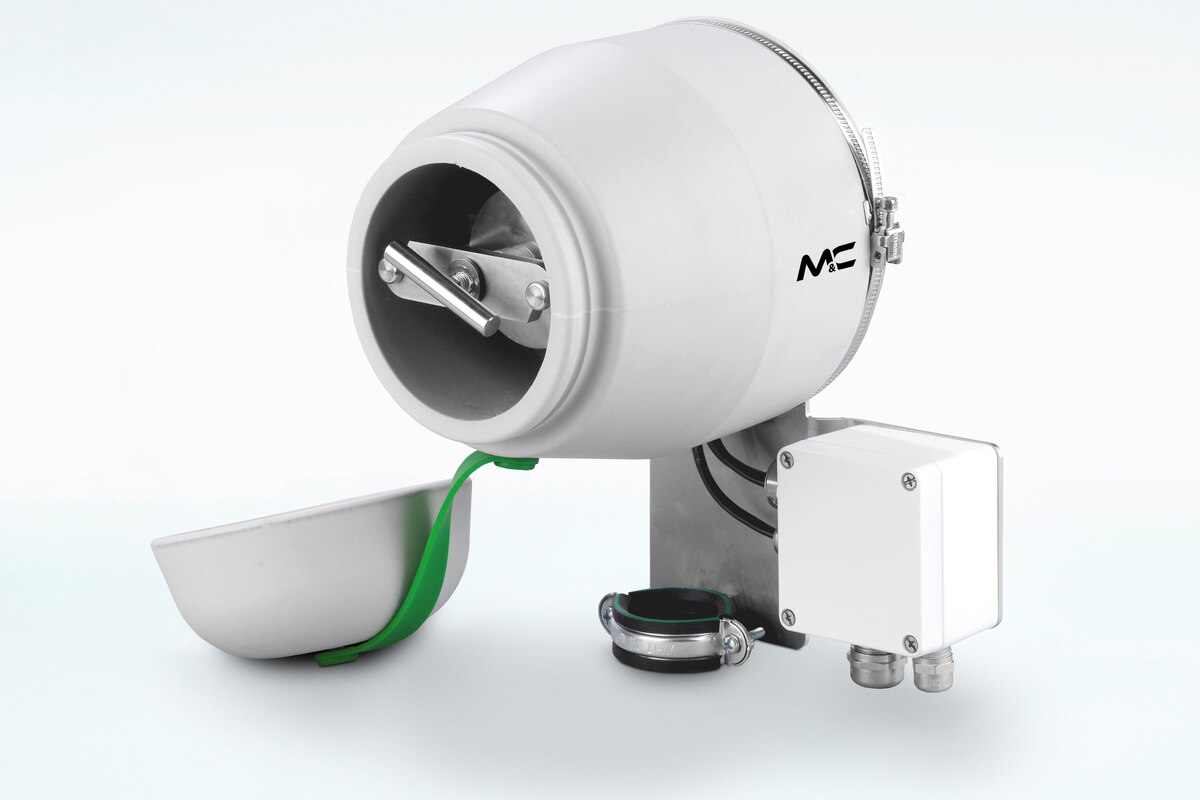

Gas Sample Probe SP180-H-EX2-T3, Zone 2

Part No.: 02S1885

Product features

  • Compact, heated gas sample probe for sampling from zones with explosive gas
  • Approval according to ATEX for sampling from gas Ex zone 2 and temperature class T3
  • With innovative weather protection cover for outdoor mounting
  • With test gas connection according to EN 14181
  • Self-regulating probe heating from 120 to 160 °C [248 to 320 °F] corresponding to temperature class T3
  • With low-temperature alarm contact: < 90 °C [194 °F], NO
  • With compact ceramic filter element, other materials available
  • Small dead volume and fast response time
  • Easy installation and low maintenance
  • Power: 110–240 V
  • Material of sample-contacting parts: stainless steel, FKM, ceramic
  • Optionally: sample tube, pre-filter
