Gas Sample Probe SP180-H-EX2-T2, Zone 2

Part No.: 02S1890

Product features

  • Compact, heated gas sample probe for sampling from zones with explosive gas
  • Approval according to ATEX for sampling from gas Ex zone 2 and temperature class T2
  • With innovative weather protection cover for outdoor mounting
  • With test gas connection according to EN 14181
  • Self-regulating probe heating from 150 to 180 °C [302 to 356 °F] corresponding to temperature class T2
  • With low-temperature alarm contact: < 90 °C [194 °F], NO
  • With compact ceramic filter element, other materials available
  • Small dead volume and fast response time
  • Easy installation and low maintenance
  • Power: 110–240 V
  • Material of sample-contacting parts: stainless steel, FKM, ceramic
  • Optionally: sample tube, pre-filter

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C sample probes version SP180EX2 are used for continuous sampling of explosive gases (Ex zone 2) from dust-loaded, high-temperature and/or humid processes. The probes can be mounted in Ex zone 2.
  • Description
    Gas sample probe type SP180 H‑EX2 T2, explosion‑proof version for installation in Ex zone 2 and sampling from zone 2 with protection class according to ATEX: Ex II 3G ec mc IIC T2 Gc EXAM BVS 16 ATEX E 039, external ceramic filter element type S‑2K (75 mm), filter porosity: 2 µm, external filter electrically heated to 180 °C with self‑regulating heating elements, low‑temperature alarm with potential‑free contact output at ‑50 °C below Tset, including weather protection shield for outdoor use, power: 110 V‑240 V, 50/60 Hz, 400 W, mounting flange: DN 65 PN 6B with threaded connection G 3/4" f, material: SS 316Ti, SS316 L, Viton®, ceramics, connection: sample gas outlet: tube screw fitting DN 4/6, calibration gas connection: tube screw fitting DN 4/6 with blind cap
  • Product features
    Explosion-proof Yes
    Heating Yes
    Temperature 180 °C [356 °F]
    Filter surface Small
    Shutoff/blowback No
    Calibration No
    Portable No
    Power supply 110‒120 V 220‒240 V
    Material Stainless steel

Options & spare parts

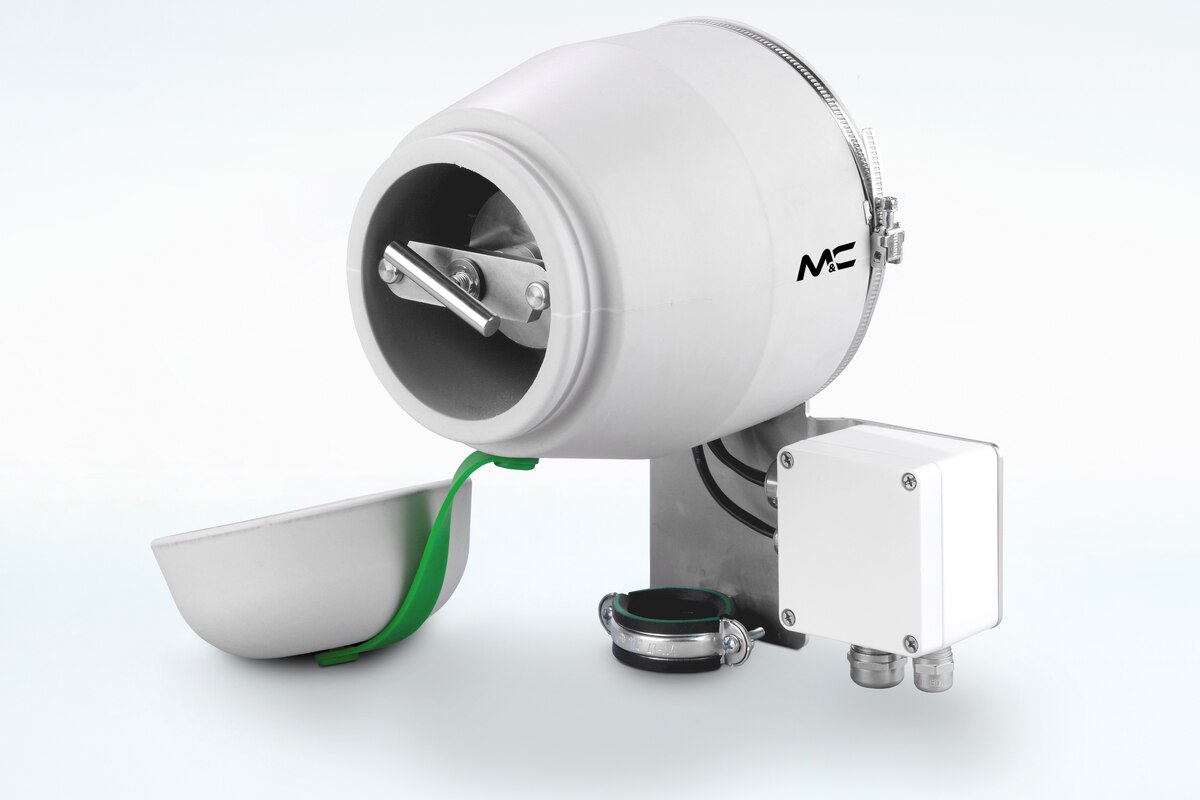

Gas Sample Probe SP180-H-EX2-T2, Zone 2
