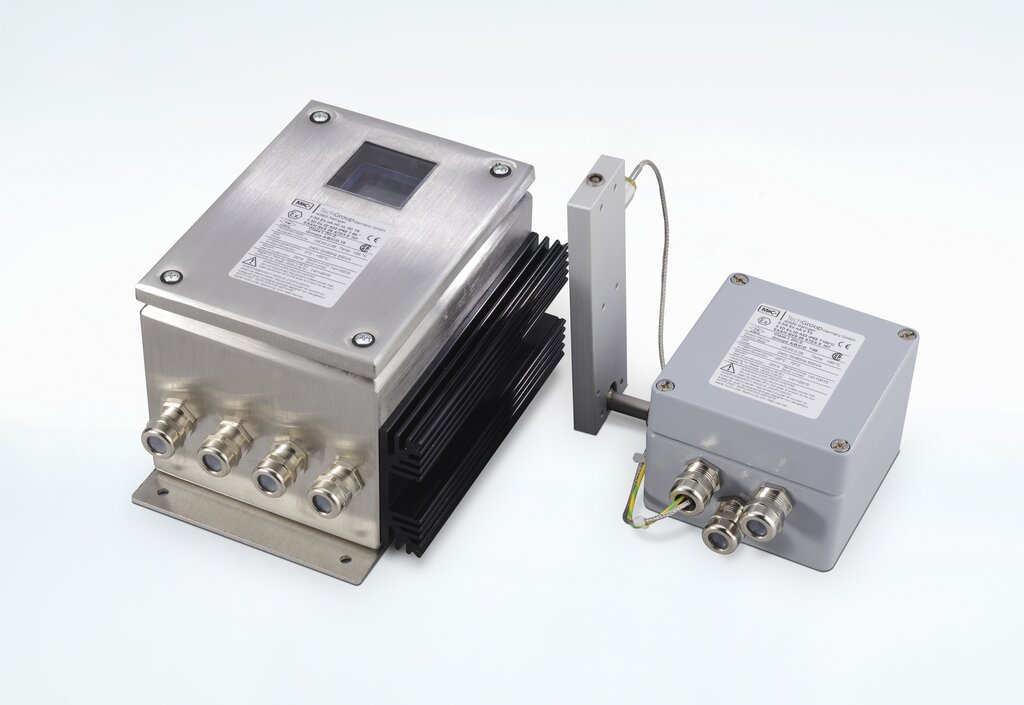

Ex Heater HEX5-2.08, Zone 2

Part No.: 20S9655A

Product features

  • Ex heater with external temperature controller in a separate wall-mounting housing
  • Approval according to ATEX and CSA for sampling from gas Ex zone 2 or 22 and Class I Division 2, respectively
  • For gas sample probe type SP3200, mounting is carried out by M&C
  • Temperature controller is factory-set to the required temperature class T2 to T5, and locked to prevent unauthorized access
  • Max. operating temperature between 70 and 230 °C [158 and 446 °F], depending on temperature class
  • With high-temperature limiter and low-temperature alarm
  • Power: 120 V

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Description
    Option: Ex heater type HEX 5‑2.08, ATEX certified version for hazardous zone 2/22 with the marking: EXAM BVS 09 ATEX 107, \cf1II 3 G Ex ec nC IIC temperature class T5 to T2 Gc, II 3 D Ex tc IIIC T 75 °C bis 235 °C and \cf0additionally according to: CSA Class I, DIV 2, A/B/C/D, temperature sensor PT100 and temperature controller 70304 in a housing, separate mounting, max. ambient temp. 50 °C, power: 120 V, 50/60 Hz, 800 W, please indicate the additional item number (20S9608 ‑ 20S9618) for the temperature class T2 ‑ T5 when ordering\f2
  • Product features
    Explosion-proof Yes
    Heating Yes
    Temperature 230 °C [446 °F]
    Power supply 110‒120 V

Configure the product in 4 steps

Was frequently viewed

Oblique view of Gas Sample Probe SP3200/Ex, Zone 2 and weather protective cover

Gas Sample Probe SP3200/Ex, Zone 2

20S5700

  • Explosion-proof
    • Yes
  • Heating
    • optional
  • Temperature
    • 180 °C [356 °F]
  • Filter surface
    • Medium
  • Shutoff/blowback
    • No
  • Calibration
    • No
  • Portable
    • No
  • Power supply
    • Without
  • Material
    • Stainless steel
Certifications

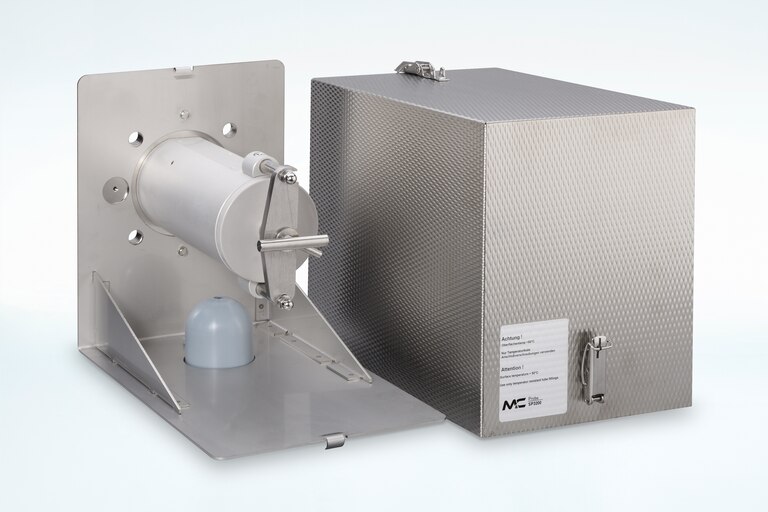

Oblique view Gas Sample Probe SP3200V/Ex, Zone 2 and weather protective cover
