Self-Regulating Sample Line 5/50-6EX

Part No.: 01B6560EX

Product features

  • Self-regulating, electrically heated sample line
  • Approval according to ATEX for mounting in explosion zones 1, 2, 21 and 22
  • Ex approved self-limiting heater band
  • Sold by the meter for on-site assembly or optionally factory-assembled according to your specifications
  • Inner tube is non-replaceable
  • Holding temperature at -20 °C [-4 °F] ambient temperature: +50 °C [+122 °F], temperature class T3
  • Max. length allowed for -20 °C [-4 °F] ambient temperature: 65 m
  • Available up to a length of 99 m
  • Inner tube made of stainless steel with Ø DN 6/8
  • Outer jacket is a black corrugated PA hose
  • Operating pressure: max. 100 bar g
  • Electrical connection: for on-site assembly the heater band needs to be connected to an Ex terminal box, for factory assembly a 1 m long heater band is connected to an Ex e terminal box
  • Power: 230 V, 115 V available as option
  • Optionally: factory assembly, accessories for on-site assembly

Certifications

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The electrically heated, self-regulating M&C sample lines 5/.../Ex are used in gas analysis systems for the transport of sample gas from the sample point to the gas conditioning system. They prevent measuring faults in the lower temperature ranges from +5 °C to +100 °C and protect the system against freeze. However, temperature monitoring of the total heated line is not possible due to the function as parallel heater band.
  • Description
    Self‑regulating, electrically heated sample line type 5/50‑6Ex, ATEX certified version for hazardous zone 1 areas with the marking: II 2 G Ex e II T3 / II 2D tD A21, protection class IP65 TX, inner liner: SS tube D 8 and outer jacket: corrugated PA hose, power: 230 V/50 Hz, power consumption: 36 W/m at +10 °C, holding temp.: +50 °C at ambient ‑20 °C, price per meter
  • Product features
    Type 5/50 Ex, self-regulating, with non-replaceable stainless steel tube, max. 50 °C, DN 6/8
    Type Self-regulating
    Explosion-proof Yes
    Temperature 50 °C [122 °F]
    Replaceable No
    Diameter DN 6/8
    Material Stainless steel
    Installation Flexible

Options & spare parts
Self-Regulating Sample Line 5/50-6EX

Here you get an overview of suitable options & spare parts

Product options

Options
Self-Regulating Sample Line 5/50-6EX

Configure the product in 4 steps

Was frequently viewed

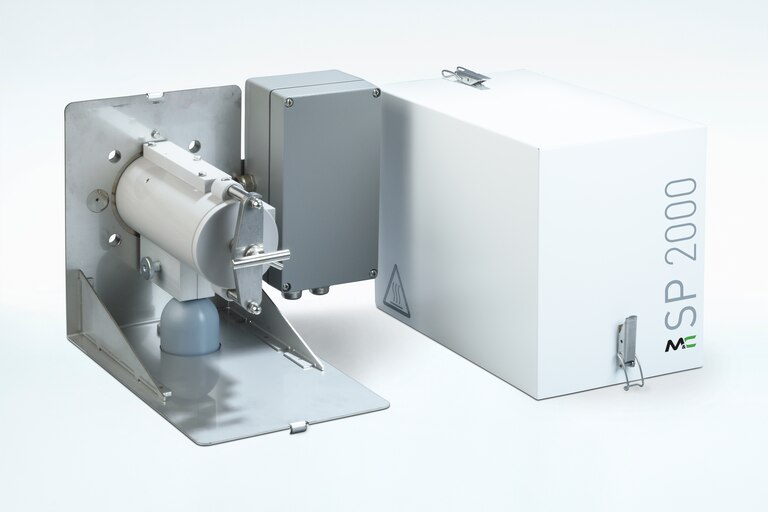

Oblique view of Gas Sample Probe SP2000-H and weather protective cover
