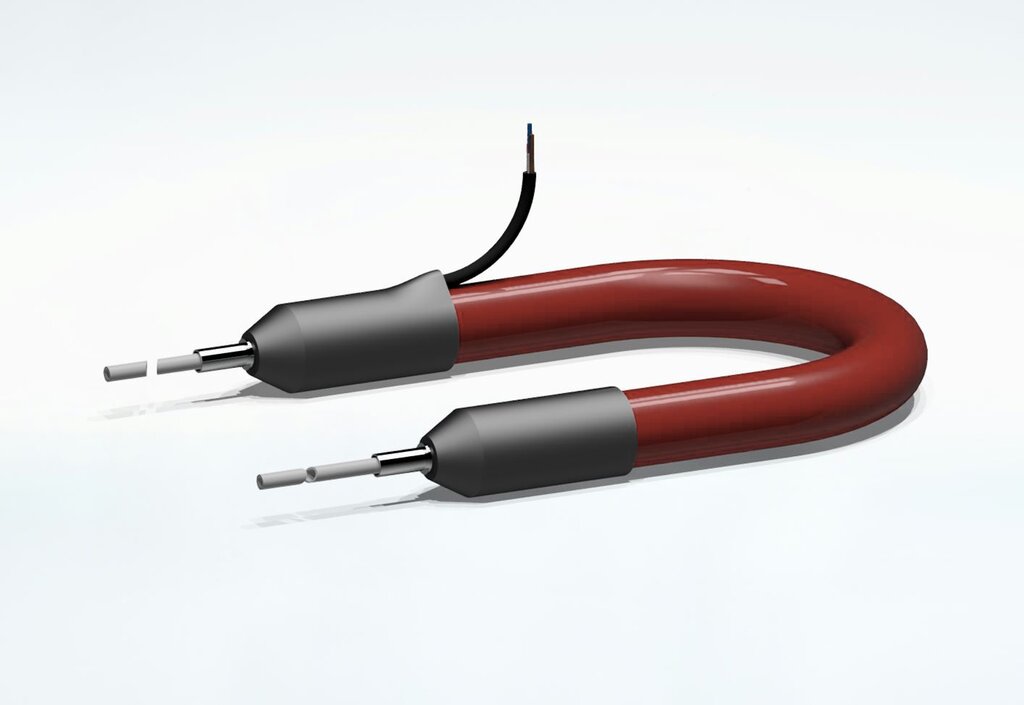

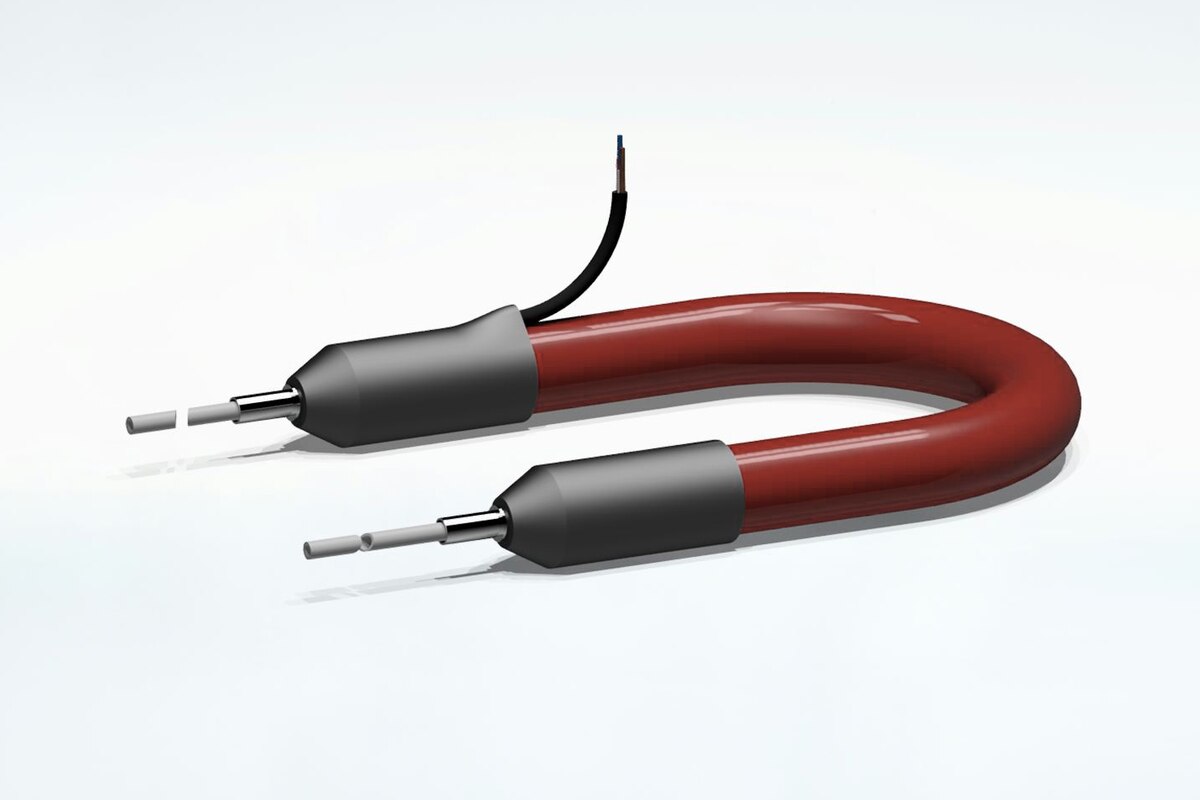

Heated Sample Line 4M4/6-S

Part No.: 04B4010

Product features

  • Electrically heated sample line for permanent installation completely assembled according to your specifications
  • Inner tube is replaceable
  • Operating temperature: max. +200 °C [+392 °F]
  • Available up to a length of 30 m (sold by the meter)
  • Inner tube made of PTFE with Ø DN 4/6
  • Outer jacket: silicone with nylon braiding
  • Operating pressure: max. 3 bar g
  • Power: 230 V supplied by external temperature controller, 115 V (up to a length of 13 m) available as option
  • Optionally: connection fitting type C including 1.5 m electrical cable for power supply and PT100 sensor, temperature controller, end fitting type Y



Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The electrically heated, plug-in M&C sample lines series 4-N/M-S are used in gas analysis systems to avoid a distortion of measuring values and they also serve as anti-freeze protection during the transport of sample gas from the sample point to the gas conditioning system or directly to the heated analyzer (above dew point).
  • Product features
    Type 4M-S with replaceable PTFE tube, max. 200 °C, DN 4/6
    Type Regulated heating
    Explosion-proof No
    Temperature 200 °C [392 °F]
    Replaceable Yes
    Diameter DN 4/6
    Material PTFE
    Installation Permanent
